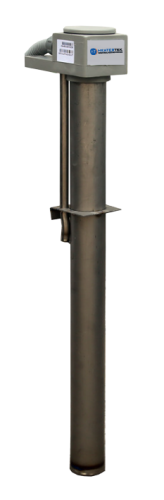

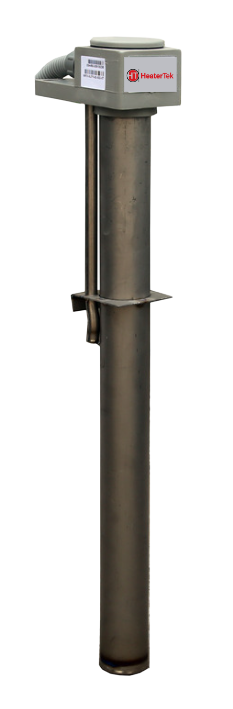

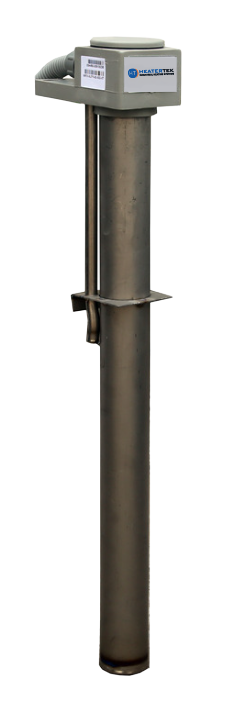

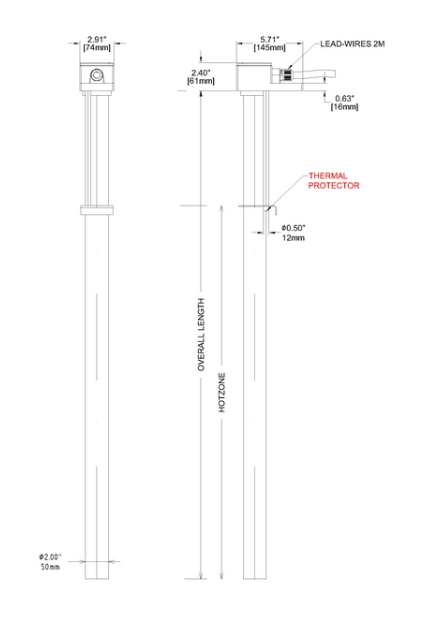

HF, HS, & HT Single Tube
Over the Side Metal Heater
- Excellent chemical resistance with stainless steel or titanium sheaths
- Low watt density for long life: 35 w/in2 (5w/cm2) for standard watt density,
- 17 w/in2 (2.5w/cm2) for deratedCorrosion resistant PP terminal enclosure
- Grounded metal element
- Voltages: 120, 208, 240, or 480
- Thermal over-temperature protection:
- P1 replaceable fuse up to 180° F
- P4 replaceable fuse up to 230° F
- P5 replaceable fuse up to 300° F
- P2 resettable fuse up to 180° F
- P6 resettable fuse up to 230° F
- P7 resettable fuse up to 300° F

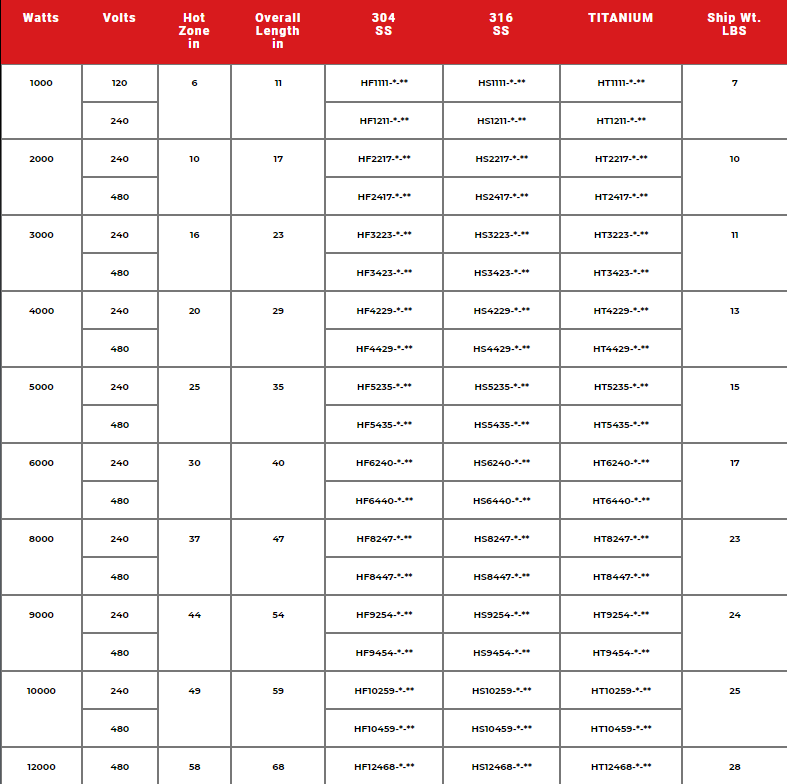

| Watts | Volts |
Hot Zone in |
Overall Length in |
304 SS |
316 SS |
TITANIUM |
Ship Wt. LBS |
|---|---|---|---|---|---|---|---|
|
1000 |
120 |
6 |
11 |
HF1111-*-** |
HS1111-*-** |
HT1111-*-** |
7 |
|
240 |
HF1211-*-** |
HS1211-*-** |
HT1211-*-** |
||||
|
2000 |
240 |
10 |
17 |
HF2217-*-** |
HS2217-*-** |
HT2217-*-** |
10 |
|
480 |
HF2417-*-** |
HS2417-*-** |
HT2417-*-** |
||||
|
3000 |
240 |
16 |
23 |
HF3223-*-** |
HS3223-*-** |
HT3223-*-** |
11 |
|
480 |
HF3423-*-** |
HS3423-*-** |
HT3423-*-** |
||||
|
4000 |
240 |
20 |
29 |
HF4229-*-** |
HS4229-*-** |
HT4229-*-** |
13 |
|
480 |
HF4429-*-** |
HS4429-*-** |
HT4429-*-** |
||||
|
5000 |
240 |
25 |
35 |
HF5235-*-** |
HS5235-*-** |
HT5235-*-** |
15 |
|
480 |
HF5435-*-** |
HS5435-*-** |
HT5435-*-** |
||||
|
6000 |
240 |
30 |
40 |
HF6240-*-** |
HS6240-*-** |
HT6240-*-** |
17 |
|
480 |
HF6440-*-** |
HS6440-*-** |
HT6440-*-** |
||||
|
8000 |
240 |
37 |
47 |
HF8247-*-** |
HS8247-*-** |
HT8247-*-** |
23 |
|
480 |
HF8447-*-** |
HS8447-*-** |
HT8447-*-** |
||||
|
9000 |
240 |
44 |
54 |
HF9254-*-** |
HS9254-*-** |
HT9254-*-** |
24 |
|
480 |
HF9454-*-** |
HS9454-*-** |
HT9454-*-** |
||||
|
10000 |
240 |
49 |
59 |
HF10259-*-** |
HS10259-*-** |
HT10259-*-** |
25 |
|
480 |
HF10459-*-** |
HS10459-*-** |
HT10459-*-** |
||||
|
12000 |
480 |
58 |
68 |
HF12468-*-** |
HS12468-*-** |
HT12468-*-** |
28 |

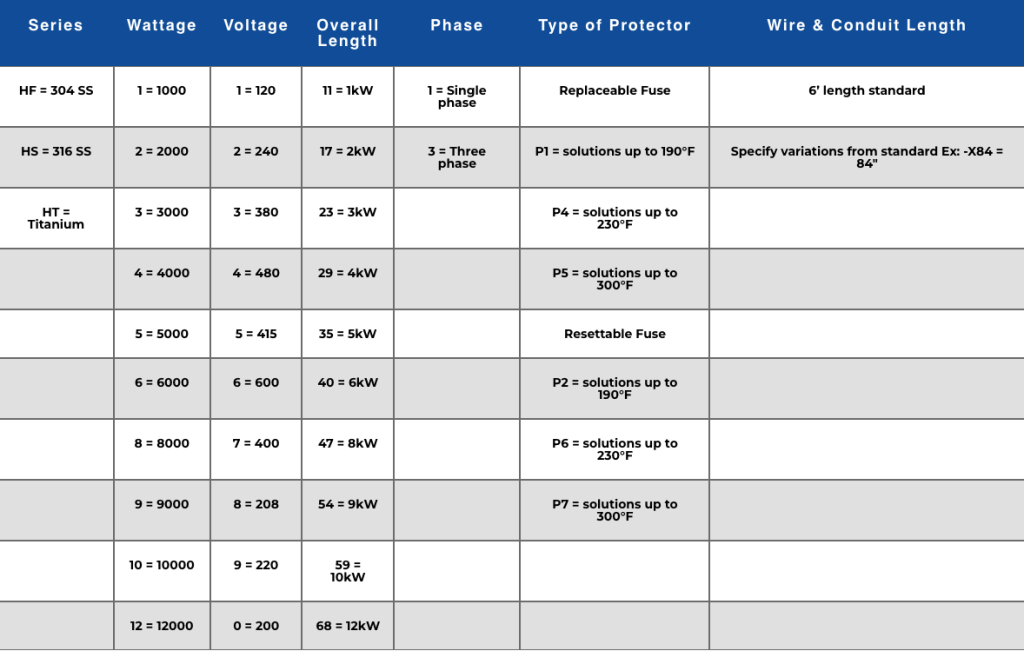

| Series | Wattage | Voltage |
Overall Length |
Phase | Type of Protector | Wire & Conduit Length |
|---|---|---|---|---|---|---|
|
HF = 304 SS |
1 = 1000 |
1 = 120 |
11 = 1kW |
1 = Single phase |
Replaceable Fuse |
36″ length standard |
|
HS = 316 SS |
2 = 2000 |
2 = 240 |
17 = 2kW |
3 = Three phase |
P1 = solutions up to 190°F |
Specify variations from standard Ex: -X84 = 84″ |
|
HT = Titanium |
3 = 3000 |
3 = 380 |
23 = 3kW |
|
P4 = solutions up to 230°F |
|
|
|
4 = 4000 |
4 = 480 |
29 = 4kW |
|
P5 = solutions up to 300°F |
|
|
|
5 = 5000 |
5 = 415 |
35 = 5kW |
|
Resettable Fuse |
|
|
|
6 = 6000 |
6 = 600 |
40 = 6kW |
|
P2 = solutions up to 190°F |
|
|
|
8 = 8000 |
7 = 400 |
47 = 8kW |
|
P6 = solutions up to 230°F |
|
|
|
9 = 9000 |
8 = 208 |
54 = 9kW |
|
P7 = solutions up to 300°F |
|
|
|
10 = 10000 |
9 = 220 |
59 = 10kW |
|
|
|
|
|
12 = 12000 |
0 = 200 |
68 = 12kW |
|
|
|
