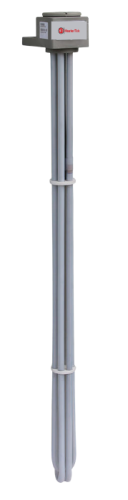

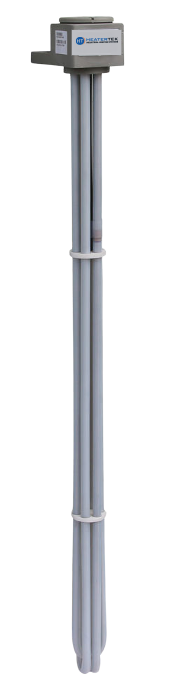

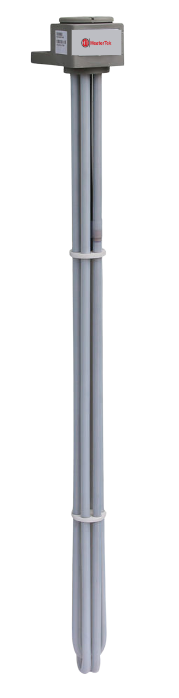

3HZ Three Element
PTFE Heater
HeaterTek’s PTFE fluoropolymer heaters are engineered with precision and reliability to deliver unparalleled performance in challenging environments. Explore the superior features that make our heaters stand out in the industry:
- Exceptional Chemical Resistance: Designed to withstand most aqueous chemistries, our PTFE fluoropolymer heaters excel in highly corrosive and demanding applications.
- Robust Construction: Featuring heavy-wall PTFE tubing encasing a stainless steel element, these heaters ensure maximum durability and safety.
- Optimized Watt Density: With a low watt density of 10 w/in² (1.5w/cm²), our heaters are crafted for extended lifespan and efficient performance.
- Corrosion-Resistant Terminal Enclosure: The polypropylene (PP) terminal enclosure protects against harsh environmental conditions.
- Comprehensive Accessories: Every unit includes a 36″ standard wire and conduit for hassle-free installation.
- Enhanced Safety: Grounded metal elements provide added security and operational stability.
- Voltage Versatility: Available in multiple voltage options: 120, 208, 240, and 480, ensuring compatibility with various systems.
- Customizable Guards: Optional guards are available for additional protection and tailored applications.
- Advanced Over-Temperature Protection: Safeguard your equipment with replaceable and resettable fuses designed for various temperature thresholds:
- Replaceable Fuses:
- P1: Up to 190°F
- P4: Up to 220°F
- Resettable Fuses:
- P2: Up to 190°F
- P8: Up to 210°F
- P6: Up to 230°F
- Replaceable Fuses:
Why Choose HeaterTek? Our PTFE fluoropolymer heaters are crafted to meet the rigorous demands of modern industries, combining efficiency, safety, and durability. Whether you’re in chemical processing, semiconductor manufacturing, or any industry requiring high-performance heating solutions, HeaterTek is your trusted partner.
By integrating these key features into your processes, you’ll experience unmatched reliability and cost-effective operation. Contact us today to learn how our PTFE fluoropolymer heaters can elevate your system’s performance.

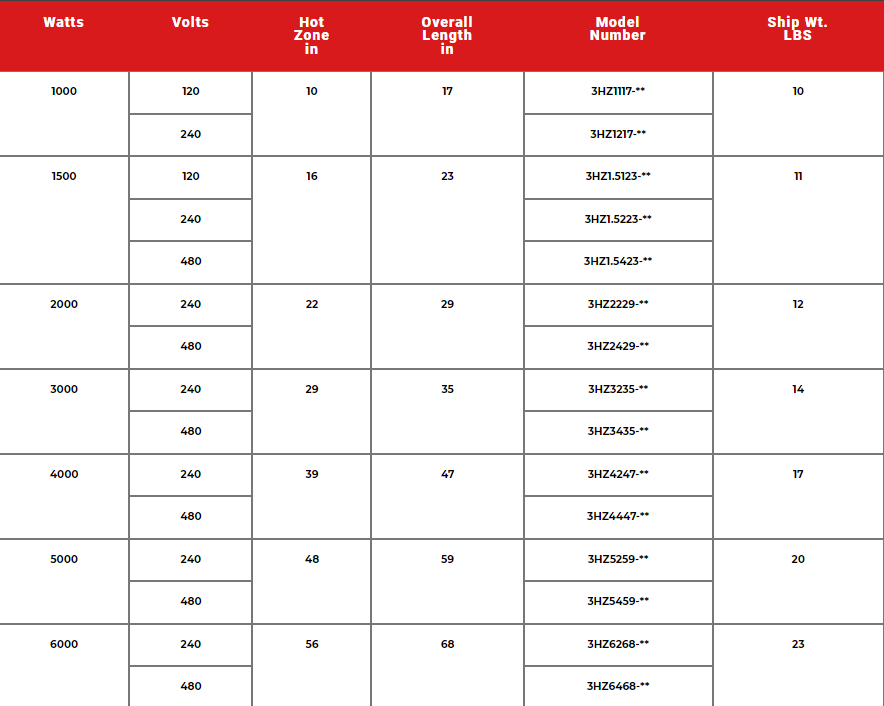

| Watts | Volts |
Hot Zone in |
Overall Length in |
Model Number |
Ship Wt. LBS |
|---|---|---|---|---|---|
|
1000 |
120 |
10 |
17 |
3HZ1117-** |
10 |
|
240 |
3HZ1217-** |
||||
|
1500 |
120 |
16 |
23 |
3HZ1.5123-** |
11 |
|
240 |
3HZ1.5223-** |
||||
|
480 |
3HZ1.5423-** |
||||
|
2000 |
240 |
22 |
29 |
3HZ2229-** |
12 |
|
480 |
3HZ2429-** |
||||
|
3000 |
240 |
29 |
35 |
3HZ3235-** |
14 |
|
480 |
3HZ3435-** |
||||
|
4000 |
240 |
39 |
47 |
3HZ4247-** |
17 |
|
480 |
3HZ4447-** |
||||
|
5000 |
240 |
48 |
59 |
3HZ5259-** |
20 |
|
480 |
3HZ5459-** |
||||
|
6000 |
240 |
56 |
68 |
3HZ6268-** |
23 |
|
480 |
3HZ6468-** |

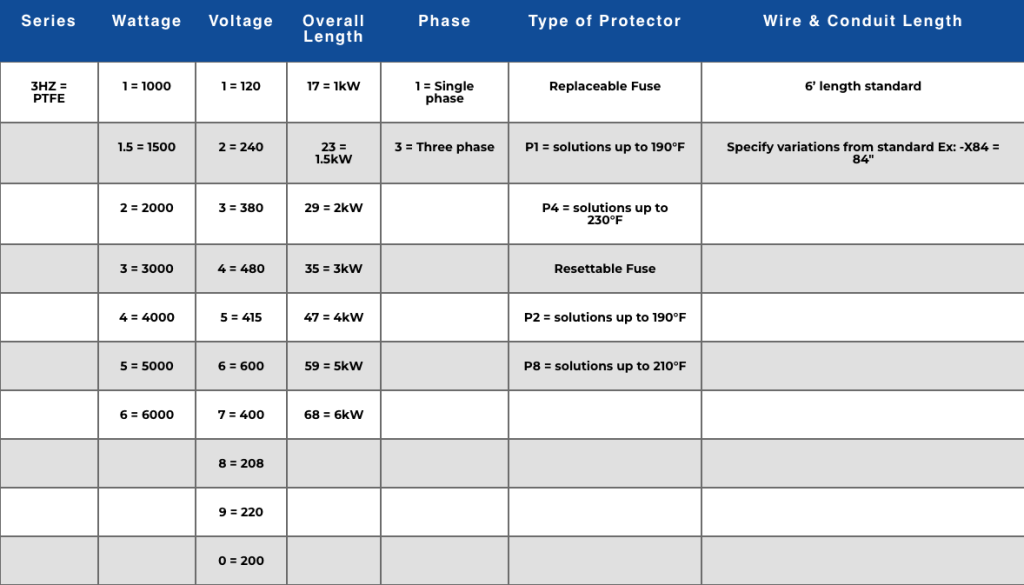

| Series | Wattage | Voltage |
Overall Length |
Phase | Type of Protector | Wire & Conduit Length |
|---|---|---|---|---|---|---|
|
3HZ = PTFE |
1 = 1000 |
1 = 120 |
17 = 1kW |
1 = Single phase |
Replaceable Fuse |
36″ length standard |
|
|
1.5 = 1500 |
2 = 240 |
23 = 1.5kW |
3 = Three phase |
P1 = solutions up to 190°F |
Specify variations from standard Ex: -X84 = 84″ |
|
|
2 = 2000 |
3 = 380 |
29 = 2kW |
|
P4 = solutions up to 230°F |
|
|
|
3 = 3000 |
4 = 480 |
35 = 3kW |
|
Resettable Fuse |
|
|
|
4 = 4000 |
5 = 415 |
47 = 4kW |
|
P2 = solutions up to 190°F |
|
|
|
5 = 5000 |
6 = 600 |
59 = 5kW |
|
P8 = solutions up to 210°F |
|
|
|
6 = 6000 |
7 = 400 |
68 = 6kW |
|
|
|
|
|
|
8 = 208 |
|
|
|
|
|
|
|
9 = 220 |
|
|
|
|
|
|
|
0 = 200 |
|
|
|
|
