H3V Three Element Metal
Deep Tank Heater
- Excellent chemical resistance with stainless steel or titanium sheaths
- Low watt density for long life: 35 w/in2 (5w/cm2) for standard watt density,
- 17 w/in2 (2.5w/cm2) for deratedCorrosion resistant PP terminal enclosure
- Grounded metal element
- Voltages: 120, 208, 240, or 480
- Thermal over-temperature protection:
- P1 replaceable fuse up to 180° F
- P4 replaceable fuse up to 230° F
- P5 replaceable fuse up to 300° F
- P2 resettable fuse up to 180° F
- P6 resettable fuse up to 230° F
- P7 resettable fuse up to 300° F

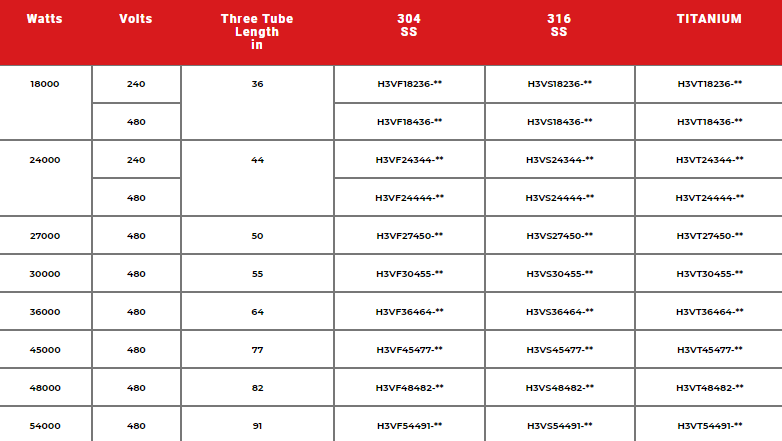

| Watts | Volts |
Three Tube Length in |
304 SS |
316 SS |
TITANIUM |
|---|---|---|---|---|---|
|
18000 |
240 |
36 |
H3VF18236-** |
H3VS18236-** |
H3VT18236-** |
|
480 |
H3VF18436-** |
H3VS18436-** |
H3VT18436-** |
||
|
24000 |
240 |
44 |
H3VF24344-** |
H3VS24344-** |
H3VT24344-** |
|
480 |
H3VF24444-** |
H3VS24444-** |
H3VT24444-** |
||
|
27000 |
480 |
50 |
H3VF27450-** |
H3VS27450-** |
H3VT27450-** |
|
30000 |
480 |
55 |
H3VF30455-** |
H3VS30455-** |
H3VT30455-** |
|
36000 |
480 |
64 |
H3VF36464-** |
H3VS36464-** |
H3VT36464-** |
|
45000 |
480 |
77 |
H3VF45477-** |
H3VS45477-** |
H3VT45477-** |
|
48000 |
480 |
82 |
H3VF48482-** |
H3VS48482-** |
H3VT48482-** |
|
54000 |
480 |
91 |
H3VF54491-** |
H3VS54491-** |
H3VT54491-** |

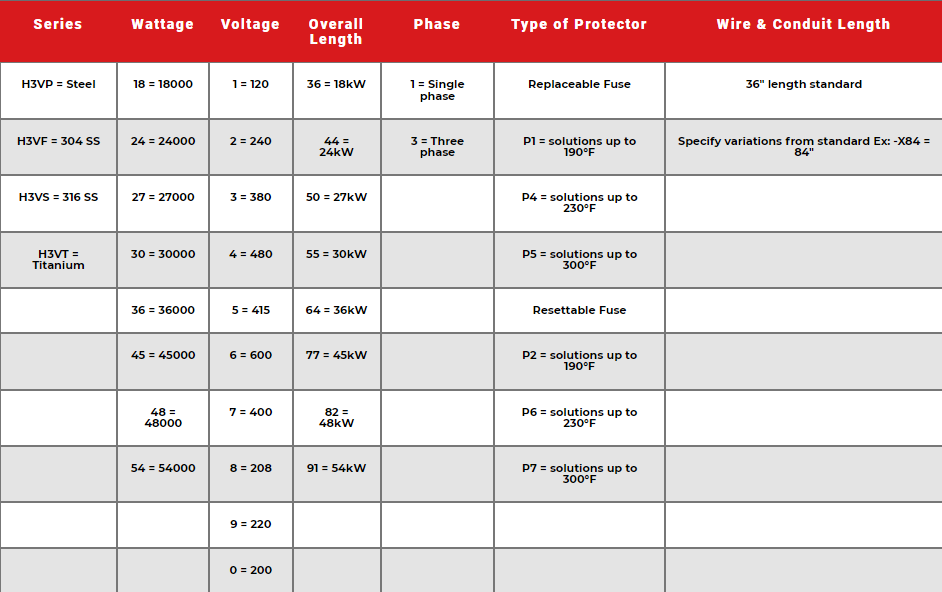

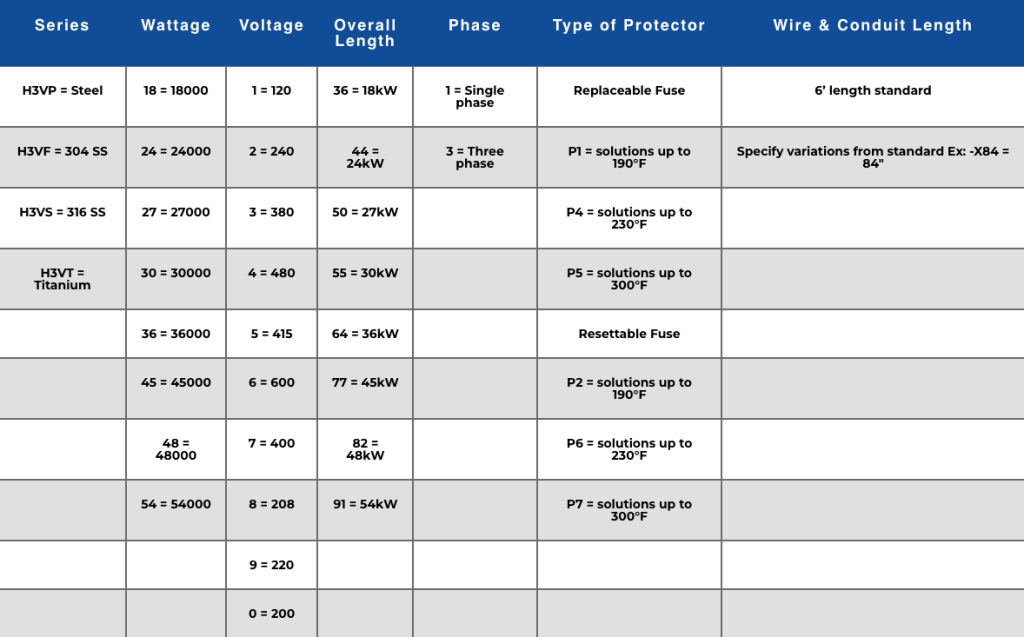

| Series | Wattage | Voltage |
Overall Length |
Phase | Type of Protector | Wire & Conduit Length |
|---|---|---|---|---|---|---|
|
H3VP = Steel |
18 = 18000 |
1 = 120 |
36 = 18kW |
1 = Single phase |
Replaceable Fuse |
36" length standard |
|
H3VF = 304 SS |
24 = 24000 |
2 = 240 |
44 = 24kW |
3 = Three phase |
P1 = solutions up to 190°F |
Specify variations from standard Ex: -X84 = 84" |
|
H3VS = 316 SS |
27 = 27000 |
3 = 380 |
50 = 27kW |
|
P4 = solutions up to 230°F |
|
|
H3VT = Titanium |
30 = 30000 |
4 = 480 |
55 = 30kW |
|
P5 = solutions up to 300°F |
|
|
|
36 = 36000 |
5 = 415 |
64 = 36kW |
|
Resettable Fuse |
|
|
|
45 = 45000 |
6 = 600 |
77 = 45kW |
|
P2 = solutions up to 190°F |
|
|
|
48 = 48000 |
7 = 400 |
82 = 48kW |
|
P6 = solutions up to 230°F |
|
|
|
54 = 54000 |
8 = 208 |
91 = 54kW |
|
P7 = solutions up to 300°F |
|
|
|
|
9 = 220 |
|
|
|
|
|
|
|
0 = 200 |
|
|
|
|
