HZO

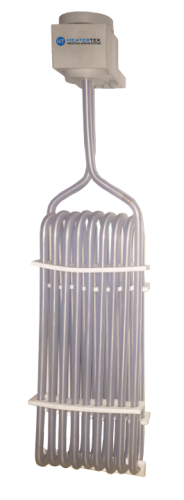

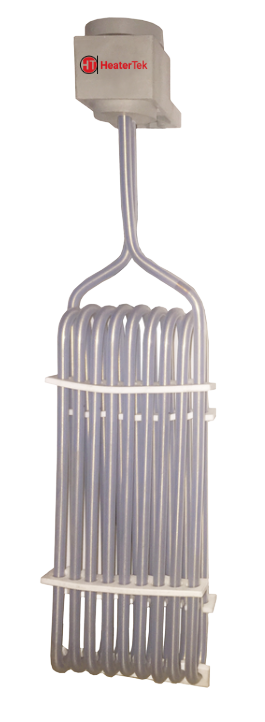

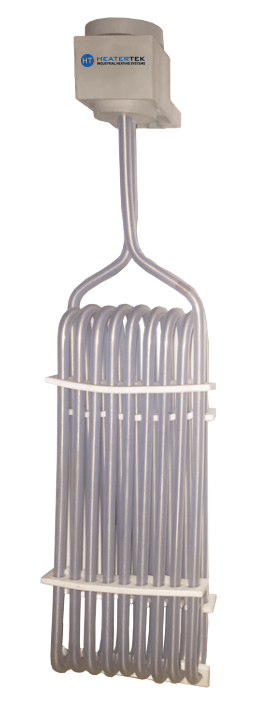

PTFE Heater
All HeaterTek PTFE fluoropolymer heaters have the same outstanding features:
- Excellent chemical resistance to most aqueous chemistries
- Heavy wall PTFE Tubing over stainless steel element
- Low watt density for long life: 10 w/in² (1.5w/cm²)
- Corrosion resistant PP terminal enclosure
- Wire & conduit included, 36″ Standard
- Grounded metal element
- Voltages 120, 208, 240, or 480
- Guards available
- Thermal over-temperature protection:
- P1 replaceable fuse up to 190°F
- P4 replaceable fuse up to 220°
- P2 resettable fuse up to 190F
- P8 resettable fuse up to 210°F
- P6 Resettable fuse up to 230°F

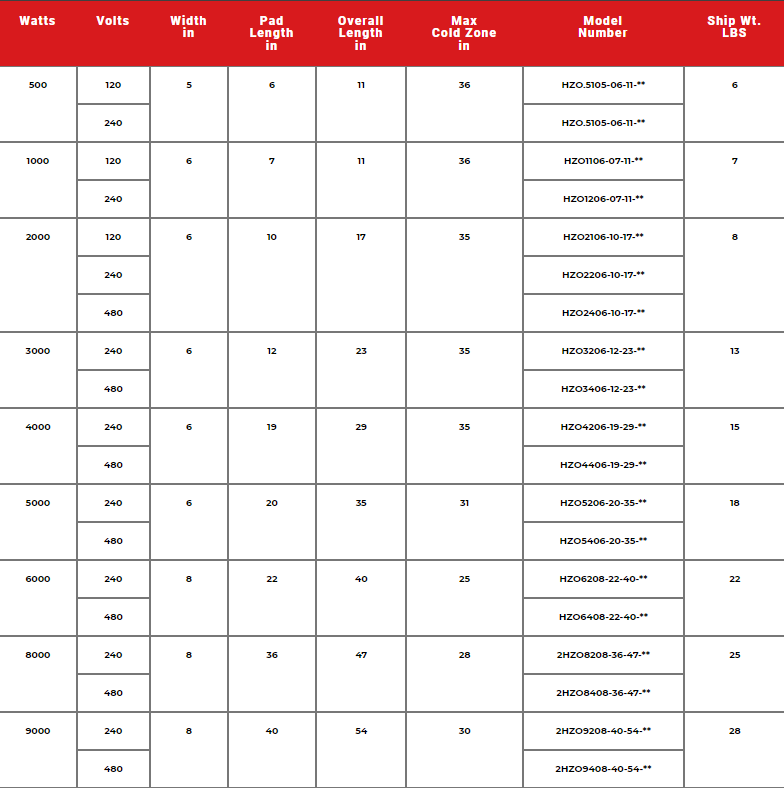

| Watts | Volts |
Width in |
Pad Length in |
Overall Length in |
Max Cold Zone in |
Model Number |
Ship Wt. LBS |
|---|---|---|---|---|---|---|---|
|
500 |
120 |
5 |
6 |
11 |
36 |
HZO.5105-06-11-** |
6 |
|
240 |
HZO.5105-06-11-** |
||||||
|
1000 |
120 |
6 |
7 |
11 |
36 |
HZO1106-07-11-** |
7 |
|
240 |
HZO1206-07-11-** |
||||||
|
2000 |
120 |
6 |
10 |
17 |
35 |
HZO2106-10-17-** |
8 |
|
240 |
HZO2206-10-17-** |
||||||
|
480 |
HZO2406-10-17-** |
||||||
|
3000 |
240 |
6 |
12 |
23 |
35 |
HZO3206-12-23-** |
13 |
|
480 |
HZO3406-12-23-** |
||||||
|
4000 |
240 |
6 |
19 |
29 |
35 |
HZO4206-19-29-** |
15 |
|
480 |
HZO4406-19-29-** |
||||||
|
5000 |
240 |
6 |
20 |
35 |
31 |
HZO5206-20-35-** |
18 |
|
480 |
HZO5406-20-35-** |
||||||
|
6000 |
240 |
8 |
22 |
40 |
25 |
HZO6208-22-40-** |
22 |
|
480 |
HZO6408-22-40-** |
||||||
|
8000 |
240 |
8 |
36 |
47 |
28 |
2HZO8208-36-47-** |
25 |
|
480 |
2HZO8408-36-47-** |
||||||
|
9000 |
240 |
8 |
40 |
54 |
30 |
2HZO9208-40-54-** |
28 |
|
480 |
2HZO9408-40-54-** |

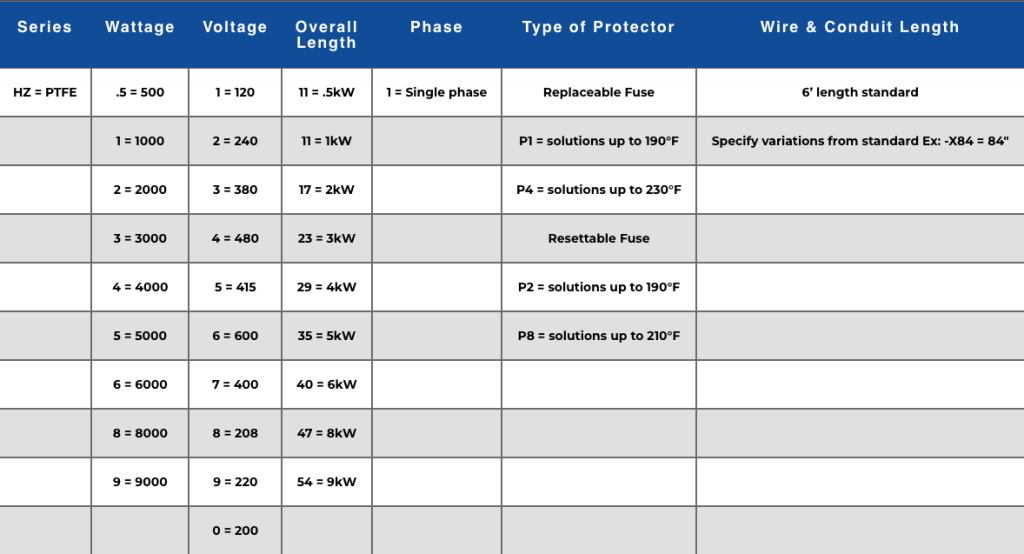

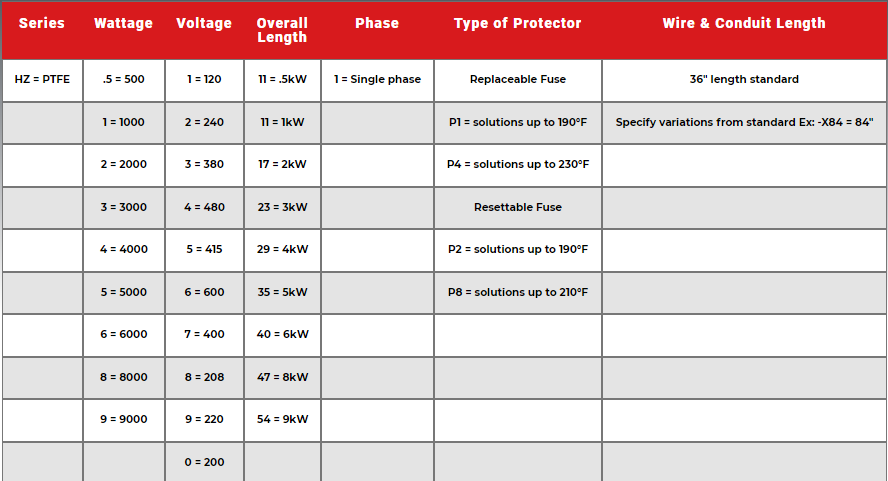

| Series | Wattage | Voltage |
Overall Length |
Phase | Type of Protector | Wire & Conduit Length |
|---|---|---|---|---|---|---|
|
HZ = PTFE |
.5 = 500 |
1 = 120 |
11 = .5kW |
1 = Single phase |
Replaceable Fuse |
36" length standard |
|
|
1 = 1000 |
2 = 240 |
11 = 1kW |
|
P1 = solutions up to 190°F |
Specify variations from standard Ex: -X84 = 84" |
|
|
2 = 2000 |
3 = 380 |
17 = 2kW |
|
P4 = solutions up to 230°F |
|
|
|
3 = 3000 |
4 = 480 |
23 = 3kW |
|
Resettable Fuse |
|
|
|
4 = 4000 |
5 = 415 |
29 = 4kW |
|
P2 = solutions up to 190°F |
|
|
|
5 = 5000 |
6 = 600 |
35 = 5kW |
|
P8 = solutions up to 210°F |
|
|
|
6 = 6000 |
7 = 400 |
40 = 6kW |
|
|
|
|
|
8 = 8000 |
8 = 208 |
47 = 8kW |
|
|
|
|
|
9 = 9000 |
9 = 220 |
54 = 9kW |
|
|
|
|
|
|
0 = 200 |
|
|
|
|
