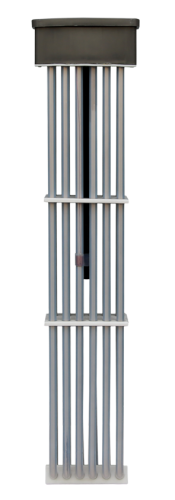

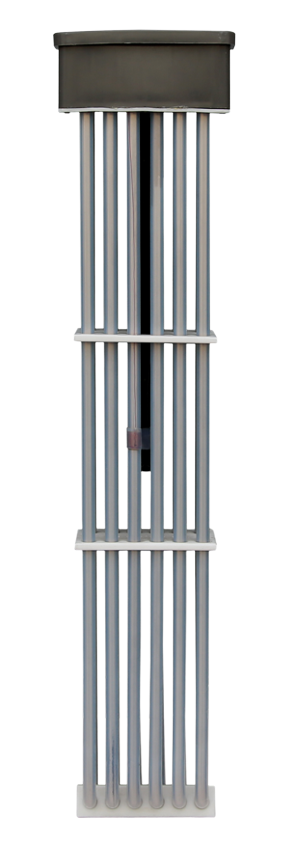

6HZ Six Element
PTFE Heater
All HeaterTek PTFE fluoropolymer heaters have the same outstanding features:
- Excellent chemical resistance to most aqueous chemistries
- Heavy wall PTFE Tubing over stainless steel element
- Low watt density for long life: 10 w/in² (1.5w/cm²)
- Corrosion resistant PP terminal enclosure
- Wire & conduit included, 36″ Standard
- Grounded metal element
- Voltages 120, 208, 240, or 480
- Guards available
- Thermal over-temperature protection:
- P1 replaceable fuse up to 190°F
- P4 replaceable fuse up to 220°
- P2 resettable fuse up to 190F
- P8 resettable fuse up to 210°F
- P6 Resettable fuse up to 230°F

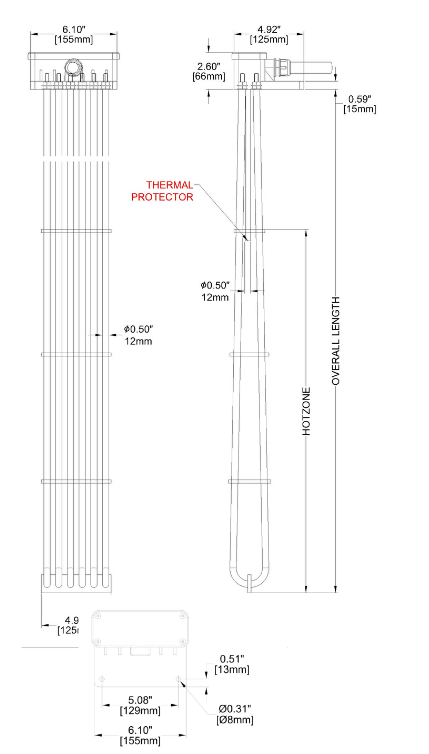

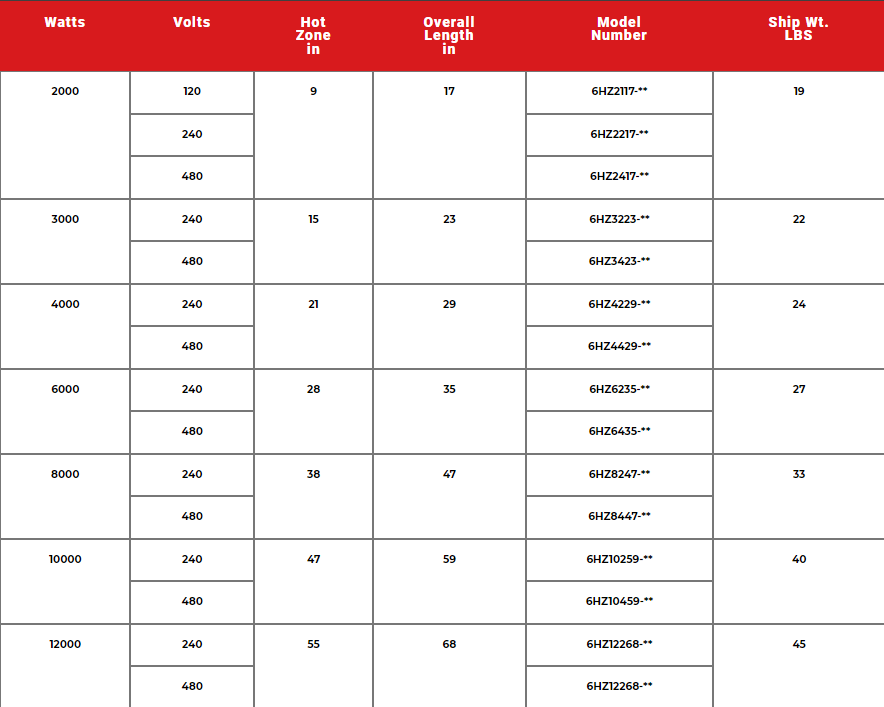

| Watts | Volts |
Hot Zone in |
Overall Length in |
Model Number |
Ship Wt. LBS |
|---|---|---|---|---|---|
|
2000 |
120 |
9 |
17 |
6HZ2117-** |
19 |
|
240 |
6HZ2217-** |
||||
|
480 |
6HZ2417-** |
||||
|
3000 |
240 |
15 |
23 |
6HZ3223-** |
22 |
|
480 |
6HZ3423-** |
||||
|
4000 |
240 |
21 |
29 |
6HZ4229-** |
24 |
|
480 |
6HZ4429-** |
||||
|
6000 |
240 |
28 |
35 |
6HZ6235-** |
27 |
|
480 |
6HZ6435-** |
||||
|
8000 |
240 |
38 |
47 |
6HZ8247-** |
33 |
|
480 |
6HZ8447-** |
||||
|
10000 |
240 |
47 |
59 |
6HZ10259-** |
40 |
|
480 |
6HZ10459-** |
||||
|
12000 |
240 |
55 |
68 |
6HZ12268-** |
45 |
|
480 |
6HZ12268-** |

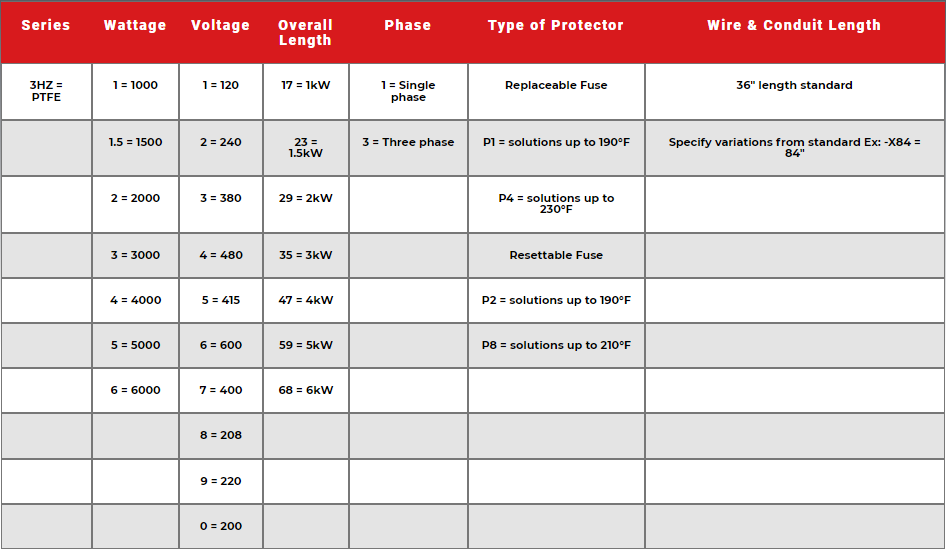

| Series | Wattage | Voltage |
Overall Length |
Phase | Type of Protector | Wire & Conduit Length |
|---|---|---|---|---|---|---|
|
6HX = PTFE |
2 = 2000 |
1 = 120 |
17 = 2kW |
1 = Single phase |
Replaceable Fuse |
36" length standard |
|
|
3 = 3000 |
2 = 240 |
23 = 3kW |
3 = Three phase |
P1 = solutions up to 190°F |
Specify variations from standard Ex: -X84 = 84" |
|
|
4 = 4000 |
3 = 380 |
29 = 4kW |
|
P4 = solutions up to 230°F |
|
|
|
6 = 6000 |
4 = 480 |
35 = 6kW |
|
Resettable Fuse |
|
|
|
8 = 8000 |
5 = 415 |
47 = 8kW |
|
P2 = solutions up to 190°F |
|
|
|
10 = 10000 |
6 = 600 |
59 = 10kW |
|
P8 = solutions up to 210°F |
|
|
|
12 = 12000 |
7 = 400 |
68 = 12kW |
|
|
|
|
|
|
8 = 208 |
|
|
|
|
|
|
|
9 = 220 |
|
|
|
|
|
|
|
0 = 200 |
|
|
|
|
