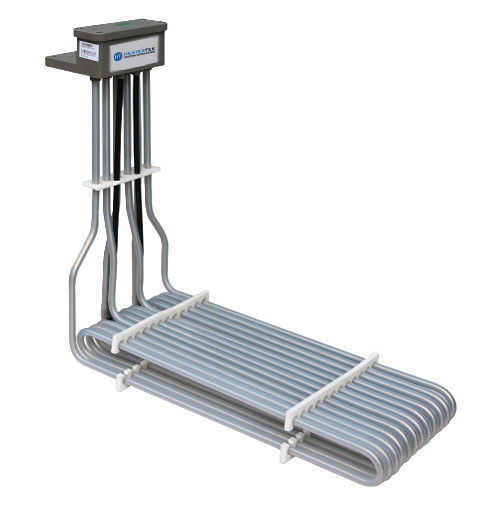

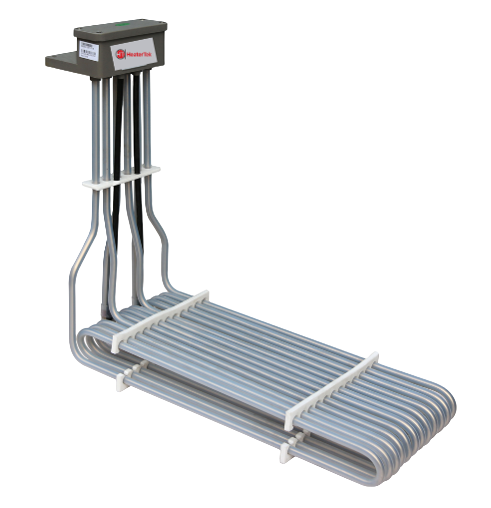

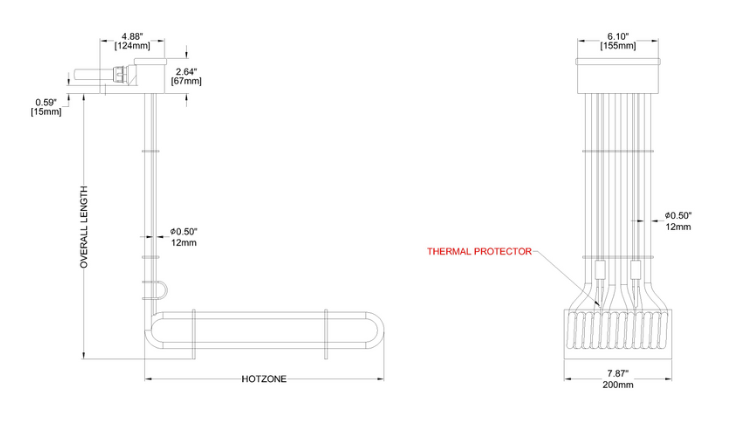

3HZOL Multi Element
L-Shaped PTFE Heater
All HeaterTek PTFE fluoropolymer heaters have the same outstanding features:
- Excellent chemical resistance to most aqueous chemistries
- Heavy wall PTFE Tubing over stainless steel element
- Low watt density for long life: 10 w/in² (1.5w/cm²)
- Corrosion resistant PP terminal enclosure
- Wire & conduit included, 36″ Standard
- Grounded metal element
- Voltages 120, 208, 240, or 480
- Guards available
- Thermal over-temperature protection:
- P1 replaceable fuse up to 190°F
- P4 replaceable fuse up to 220°
- P2 resettable fuse up to 190F
- P8 resettable fuse up to 210°F
- P6 Resettable fuse up to 230°F

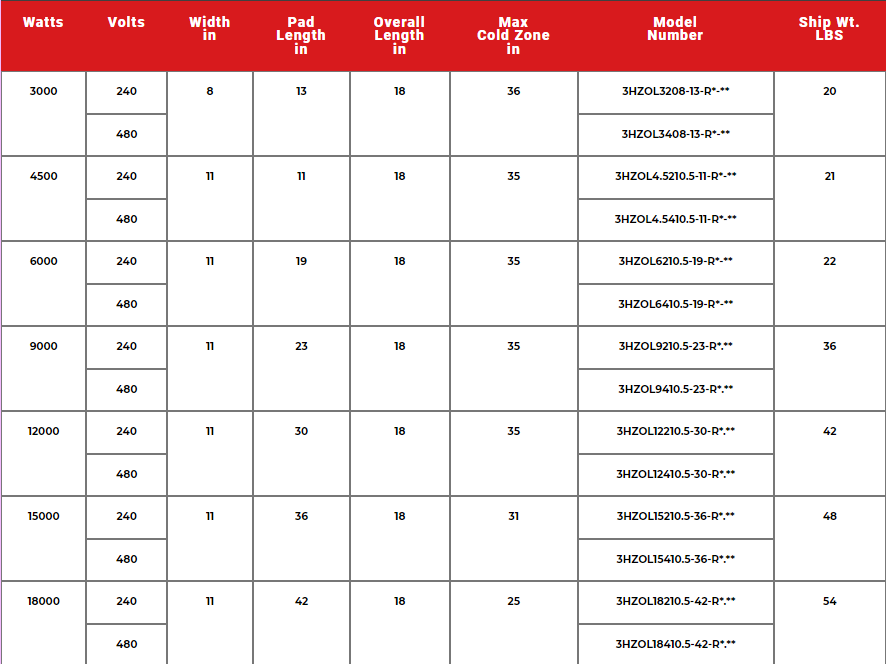

| Watts | Volts |
Width in |
Pad Length in |
Overall Length in |
Max Cold Zone in |
Model Number |
Ship Wt. LBS |
|---|---|---|---|---|---|---|---|
|
3000 |
240 |
8 |
13 |
18 |
36 |
3HZOL3208-13-R*-** |
20 |
|
480 |
3HZOL3408-13-R*-** |
||||||
|
4500 |
240 |
11 |
11 |
18 |
35 |
3HZOL4.5210.5-11-R*-** |
21 |
|
480 |
3HZOL4.5410.5-11-R*-** |
||||||
|
6000 |
240 |
11 |
19 |
18 |
35 |
3HZOL6210.5-19-R*-** |
22 |
|
480 |
3HZOL6410.5-19-R*-** |
||||||
|
9000 |
240 |
11 |
23 |
18 |
35 |
3HZOL9210.5-23-R*.** |
36 |
|
480 |
3HZOL9410.5-23-R*.** |
||||||
|
12000 |
240 |
11 |
30 |
18 |
35 |
3HZOL12210.5-30-R*.** |
42 |
|
480 |
3HZOL12410.5-30-R*.** |
||||||
|
15000 |
240 |
11 |
36 |
18 |
31 |
3HZOL15210.5-36-R*.** |
48 |
|
480 |
3HZOL15410.5-36-R*.** |
||||||
|
18000 |
240 |
11 |
42 |
18 |
25 |
3HZOL18210.5-42-R*.** |
54 |
|
480 |
3HZOL18410.5-42-R*.** |

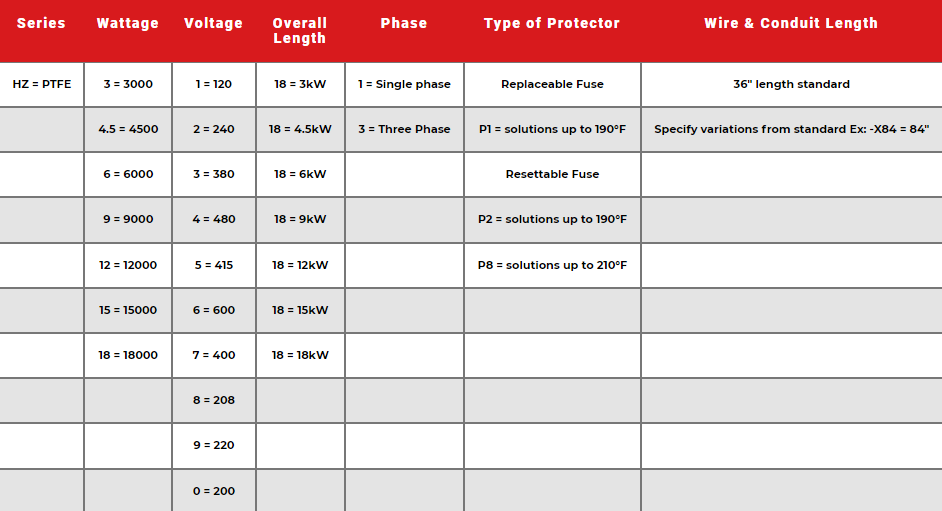

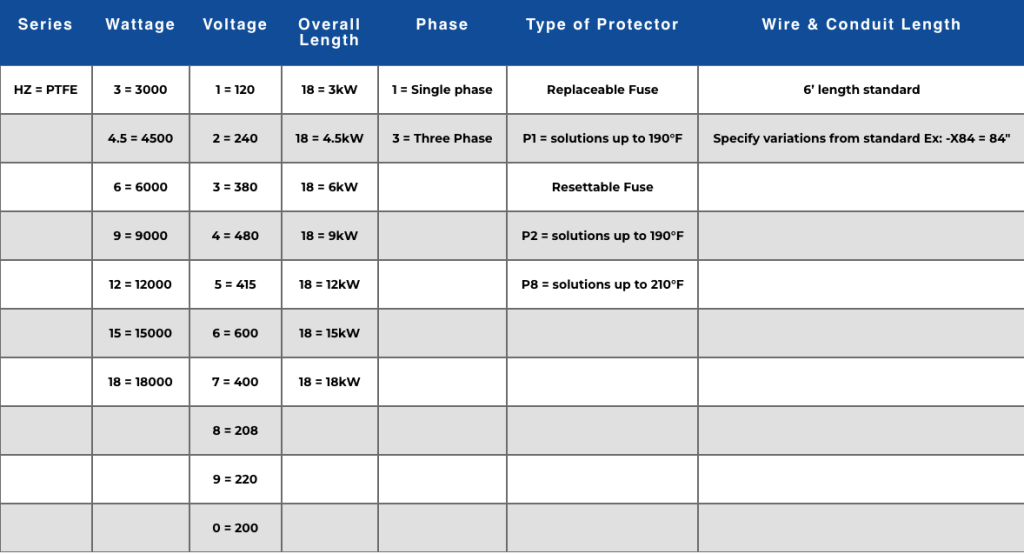

| Series | Wattage | Voltage |
Overall Length |
Phase | Type of Protector | Wire & Conduit Length |
|---|---|---|---|---|---|---|
|
HZ = PTFE |
3 = 3000 |
1 = 120 |
18 = 3kW |
1 = Single phase |
Replaceable Fuse |
36" length standard |
|
|
4.5 = 4500 |
2 = 240 |
18 = 4.5kW |
3 = Three Phase |
P1 = solutions up to 190°F |
Specify variations from standard Ex: -X84 = 84" |
|
|
6 = 6000 |
3 = 380 |
18 = 6kW |
|
Resettable Fuse |
|
|
|
9 = 9000 |
4 = 480 |
18 = 9kW |
|
P2 = solutions up to 190°F |
|
|
|
12 = 12000 |
5 = 415 |
18 = 12kW |
|
P8 = solutions up to 210°F |
|
|
|
15 = 15000 |
6 = 600 |
18 = 15kW |
|
|
|
|
|
18 = 18000 |
7 = 400 |
18 = 18kW |
|
|
|
|
|
|
8 = 208 |
|
|
|
|
|
|
|
9 = 220 |
|
|
|
|
|
|
|
0 = 200 |
|
|
|
|
