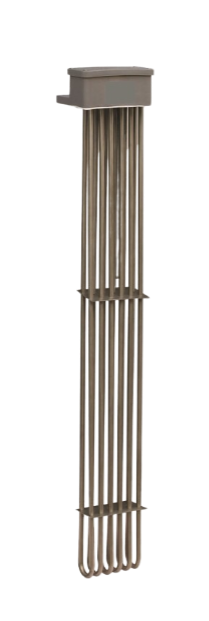

H6HS Six Element 316
Stainless Steel Heater
- Excellent chemical resistance with stainless steel or titanium sheaths
- Low watt density for long life: 35 w/in2 (5w/cm2) for standard watt density,
- 17 w/in2 (2.5w/cm2) for deratedCorrosion resistant PP terminal enclosure
- Grounded metal element
- Voltages: 120, 208, 240, or 480
- Thermal over-temperature protection:
- P1 replaceable fuse up to 180° F
- P4 replaceable fuse up to 230° F
- P5 replaceable fuse up to 300° F
- P2 resettable fuse up to 180° F
- P6 resettable fuse up to 230° F
- P7 resettable fuse up to 300° F
| Watts | Volts |
Hot Zone in |
Length in |
Model Number |
Ship Wt LBS |
|---|---|---|---|---|---|
|
6000 |
240 |
10 |
17 |
H6HS6217-** |
12 |
|
480 |
H6HS3417-** |
||||
|
9000 |
240 |
16 |
23 |
H6HS9223-** |
13 |
|
480 |
H6HS9423-** |
||||
|
15000 |
240 |
20 |
29 |
H6HS15229-** |
16 |
|
480 |
H6HS15429-** |
||||
|
21000 |
240 |
25 |
34 |
H6HS21234-** |
18 |
|
480 |
H6HS21434-** |

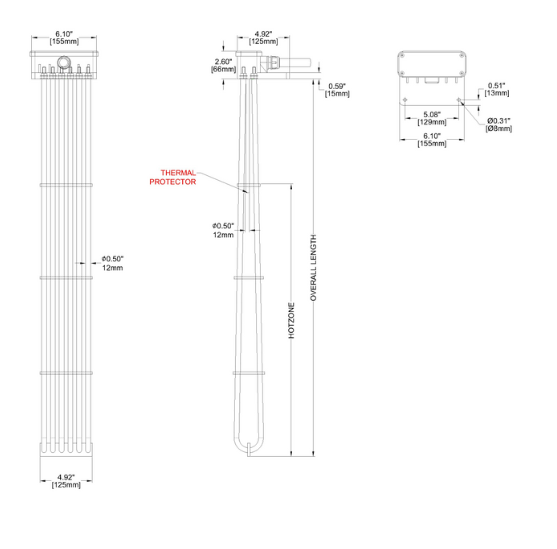

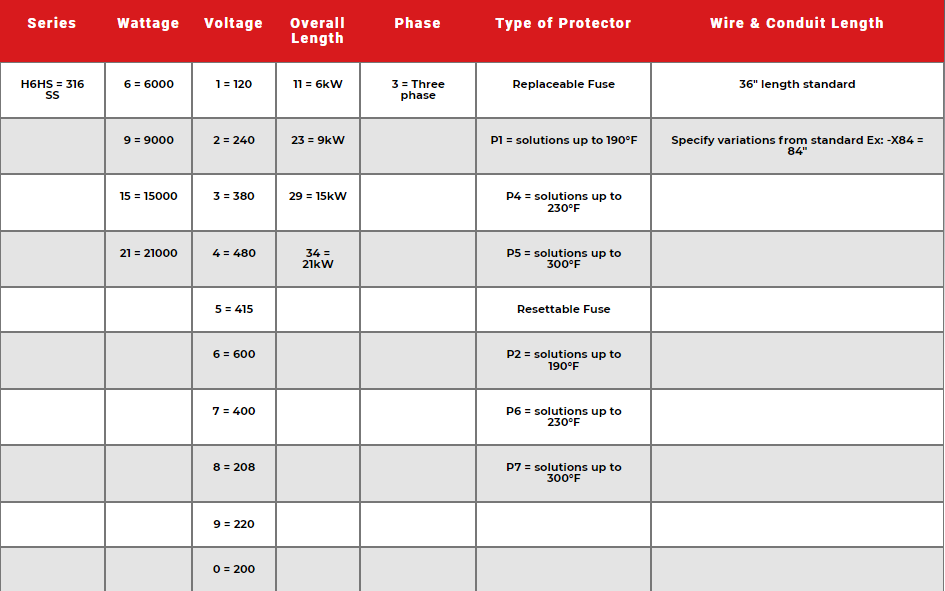

| Series | Wattage | Voltage |
Overall Length |
Phase | Type of Protector | Wire & Conduit Length |
|---|---|---|---|---|---|---|
|
H6HS = 316 SS |
6 = 6000 |
1 = 120 |
11 = 6kW |
3 = Three phase |
Replaceable Fuse |
36" length standard |
|
|
9 = 9000 |
2 = 240 |
23 = 9kW |
|
P1 = solutions up to 190°F |
Specify variations from standard Ex: -X84 = 84" |
|
|
15 = 15000 |
3 = 380 |
29 = 15kW |
|
P4 = solutions up to 230°F |
|
|
|
21 = 21000 |
4 = 480 |
34 = 21kW |
|
P5 = solutions up to 300°F |
|
|
|
|
5 = 415 |
|
|
Resettable Fuse |
|
|
|
|
6 = 600 |
|
|
P2 = solutions up to 190°F |
|
|
|
|
7 = 400 |
|
|
P6 = solutions up to 230°F |
|
|
|
|
8 = 208 |
|
|
P7 = solutions up to 300°F |
|
|
|
|
9 = 220 |
|
|
|
|
|
|
|
0 = 200 |
|
|
|
|
