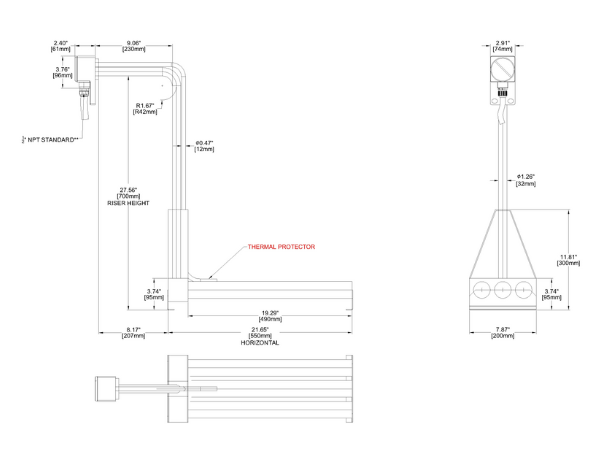

HL3 Triple Metal

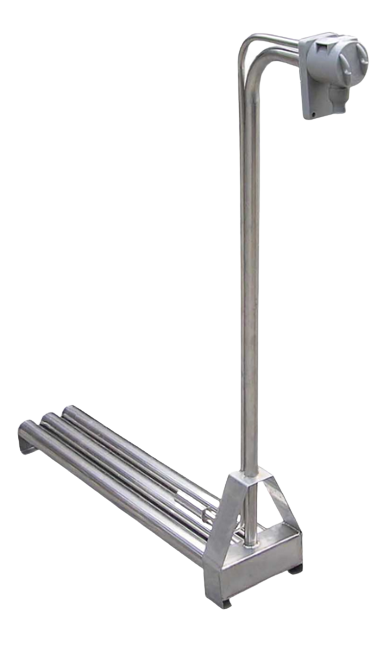

L-Shaped Heater
- Excellent chemical resistance with stainless steel or titanium sheaths
- Low watt density for long life: 35 w/in2 (5w/cm2) for standard watt density,
- 17 w/in2 (2.5w/cm2) for deratedCorrosion resistant PP terminal enclosure
- Grounded metal element
- Voltages: 120, 208, 240, or 480
- Thermal over-temperature protection:
- P1 replaceable fuse up to 180° F
- P4 replaceable fuse up to 230° F
- P5 replaceable fuse up to 300° F
- P2 resettable fuse up to 180° F
- P6 resettable fuse up to 230° F
- P7 resettable fuse up to 300° F

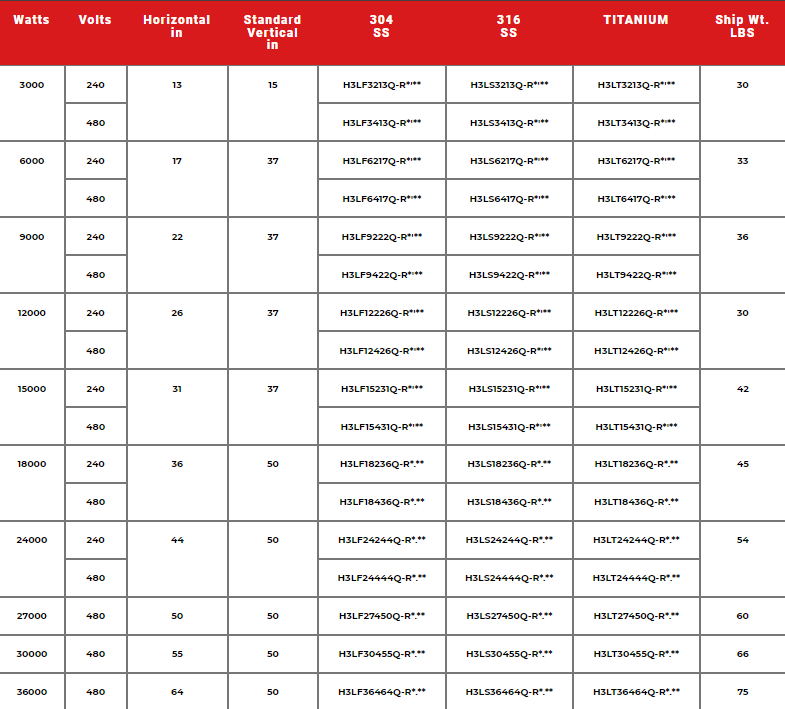

| Watts | Volts |
Horizontal in |
Standard Vertical in |
304 SS |
316 SS |
TITANIUM |
Ship Wt. LBS |
|---|---|---|---|---|---|---|---|
|
3000 |
240 |
13 |
15 |
H3LF3213Q-R*'** |
H3LS3213Q-R*'** |
H3LT3213Q-R*'** |
30 |
|
480 |
H3LF3413Q-R*'** |
H3LS3413Q-R*'** |
H3LT3413Q-R*'** |
||||
|
6000 |
240 |
17 |
37 |
H3LF6217Q-R*'** |
H3LS6217Q-R*'** |
H3LT6217Q-R*'** |
33 |
|
480 |
H3LF6417Q-R*'** |
H3LS6417Q-R*'** |
H3LT6417Q-R*'** |
||||
|
9000 |
240 |
22 |
37 |
H3LF9222Q-R*'** |
H3LS9222Q-R*'** |
H3LT9222Q-R*'** |
36 |
|
480 |
H3LF9422Q-R*'** |
H3LS9422Q-R*'** |
H3LT9422Q-R*'** |
||||
|
12000 |
240 |
26 |
37 |
H3LF12226Q-R*'** |
H3LS12226Q-R*'** |
H3LT12226Q-R*'** |
30 |
|
480 |
H3LF12426Q-R*'** |
H3LS12426Q-R*'** |
H3LT12426Q-R*'** |
||||
|
15000 |
240 |
31 |
37 |
H3LF15231Q-R*'** |
H3LS15231Q-R*'** |
H3LT15231Q-R*'** |
42 |
|
480 |
H3LF15431Q-R*'** |
H3LS15431Q-R*'** |
H3LT15431Q-R*'** |
||||
|
18000 |
240 |
36 |
50 |
H3LF18236Q-R*.** |
H3LS18236Q-R*.** |
H3LT18236Q-R*.** |
45 |
|
480 |
H3LF18436Q-R*.** |
H3LS18436Q-R*.** |
H3LT18436Q-R*.** |
||||
|
24000 |
240 |
44 |
50 |
H3LF24244Q-R*.** |
H3LS24244Q-R*.** |
H3LT24244Q-R*.** |
54 |
|
480 |
H3LF24444Q-R*.** |
H3LS24444Q-R*.** |
H3LT24444Q-R*.** |
||||
|
27000 |
480 |
50 |
50 |
H3LF27450Q-R*.** |
H3LS27450Q-R*.** |
H3LT27450Q-R*.** |
60 |
|
30000 |
480 |
55 |
50 |
H3LF30455Q-R*.** |
H3LS30455Q-R*.** |
H3LT30455Q-R*.** |
66 |
|
36000 |
480 |
64 |
50 |
H3LF36464Q-R*.** |
H3LS36464Q-R*.** |
H3LT36464Q-R*.** |
75 |

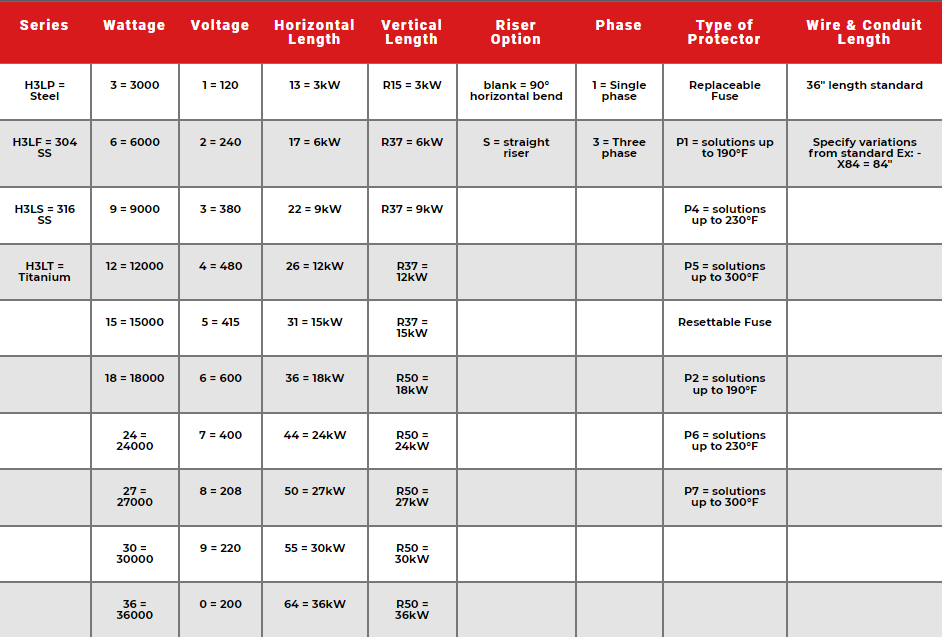

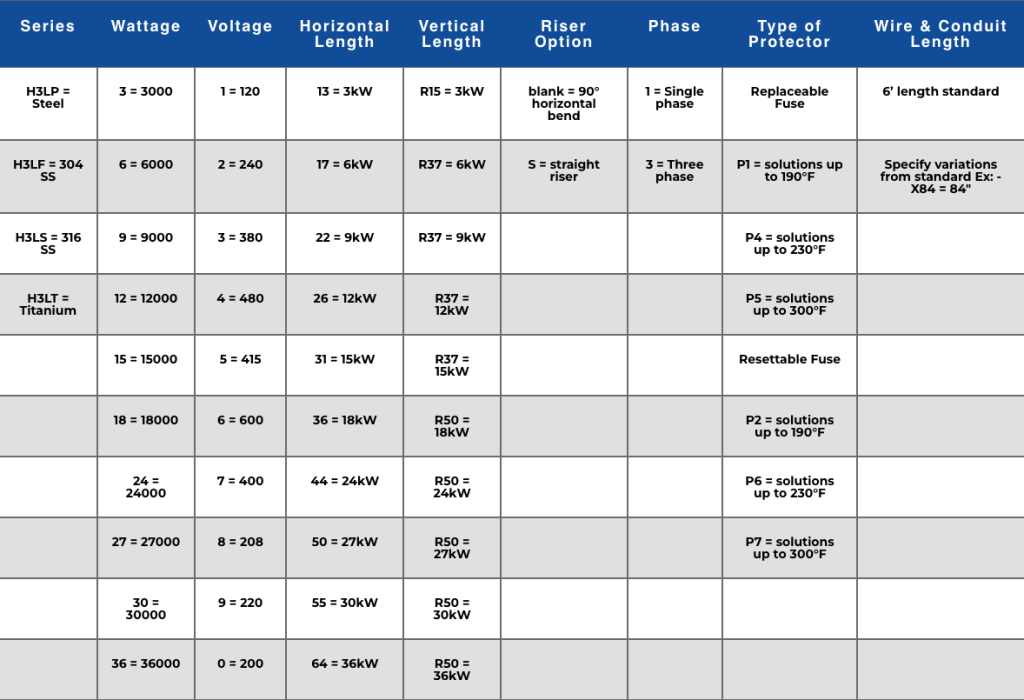

| Series | Wattage | Voltage |
Horizontal Length |
Vertical Length |
Riser Option | Phase | Type of Protector | Wire & Conduit Length |
|---|---|---|---|---|---|---|---|---|
|
H3LP = Steel |
3 = 3000 |
1 = 120 |
13 = 3kW |
R15 = 3kW |
blank = 90° horizontal bend |
1 = Single phase |
Replaceable Fuse |
36" length standard |
|
H3LF = 304 SS |
6 = 6000 |
2 = 240 |
17 = 6kW |
R37 = 6kW |
S = straight riser |
3 = Three phase |
P1 = solutions up to 190°F |
Specify variations from standard Ex: -X84 = 84" |
|
H3LS = 316 SS |
9 = 9000 |
3 = 380 |
22 = 9kW |
R37 = 9kW |
|
|
P4 = solutions up to 230°F |
|
|
H3LT = Titanium |
12 = 12000 |
4 = 480 |
26 = 12kW |
R37 = 12kW |
|
|
P5 = solutions up to 300°F |
|
|
|
15 = 15000 |
5 = 415 |
31 = 15kW |
R37 = 15kW |
|
|
Resettable Fuse |
|
|
|
18 = 18000 |
6 = 600 |
36 = 18kW |
R50 = 18kW |
|
|
P2 = solutions up to 190°F |
|
|
|
24 = 24000 |
7 = 400 |
44 = 24kW |
R50 = 24kW |
|
|
P6 = solutions up to 230°F |
|
|
|
27 = 27000 |
8 = 208 |
50 = 27kW |
R50 = 27kW |
|
|
P7 = solutions up to 300°F |
|
|
|
30 = 30000 |
9 = 220 |
55 = 30kW |
R50 = 30kW |
|
|
|
|
|
|
36 = 36000 |
0 = 200 |
64 = 36kW |
R50 = 36kW |
|
|
|
|
