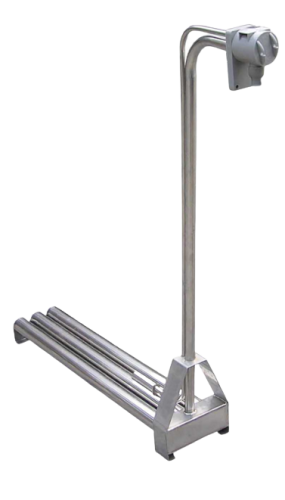

HL3 Triple Metal L-Shaped Heater

Industrial Metal Heaters for Optimal Performance and Durability

Our industrial metal heaters are designed to meet the most demanding applications, offering exceptional chemical resistance with your choice of durable stainless steel or titanium sheaths. These materials ensure reliable performance even in corrosive environments, making them an ideal solution for your industrial heating needs.

Low Watt Density for Extended Lifespan:
- Standard watt density: 35 w/in² (5 w/cm²)
Corrosion-Resistant Terminal Enclosure: The polypropylene (FRPP) terminal enclosure provides enhanced protection against environmental corrosion.
Grounded Metal Element: For improved safety and operational efficiency.
Advanced Over-Temperature Protection: Safeguard your equipment with replaceable and resettable fuses designed for various temperature thresholds to help protect equipment against low solution level conditions.
Versatile Voltage Options: Available in multiple voltage configurations to suit diverse requirements: 120V, 208V, 240V, or 480V. (Other voltages available.)
Optional welded metal terminal enclosure: Provides maximum moisture resistance. Only for use with resettable thermal protection devices. Significantly enhances heater performance for hot temperature and large kW applications.

Advanced Thermal Over-Temperature Protection: Safeguard your equipment with replaceable or resettable fuses designed for various temperature thresholds:
- Replaceable Fuses:
  - P1: Up to 180°F
  - P4: Up to 230°F
  - P5: Up to 300°F
- Resettable Fuses:
  - P2: Up to 180°F
  - P6: Up to 230°F
  - P7: Up to 300°F

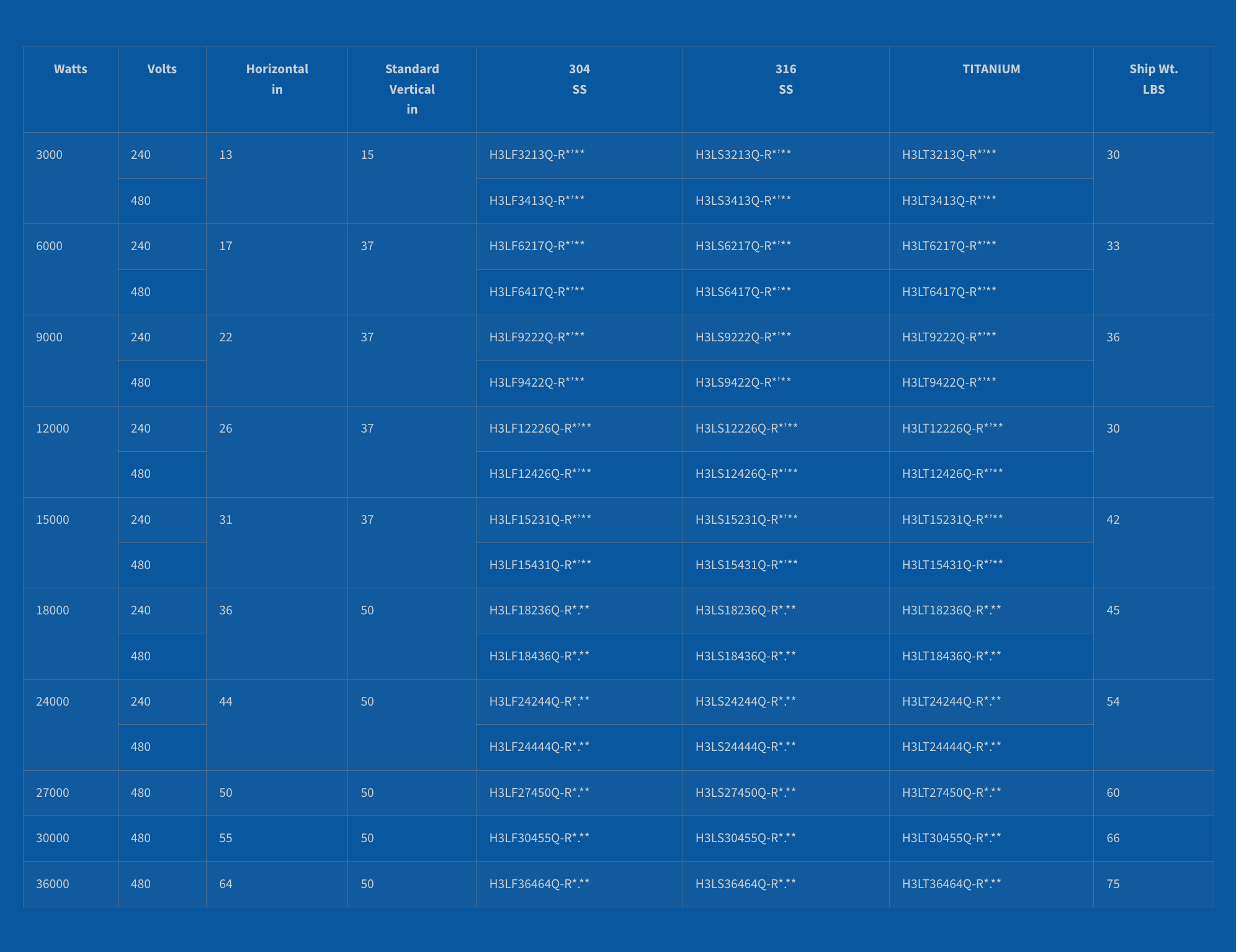

Key facts

Watts	Volts	Horizontal in	Standard Vertical in	304 SS	316 SS	TITANIUM	Ship Wt. LBS
3000	240	13	15	H3LF3213Q-R’*	H3LS3213Q-R’*	H3LT3213Q-R’*	30
3000	480	13	15	H3LF3413Q-R’*	H3LS3413Q-R’*	H3LT3413Q-R’*	30
6000	240	17	37	H3LF6217Q-R’*	H3LS6217Q-R’*	H3LT6217Q-R’*	33
6000	480	17	37	H3LF6417Q-R’*	H3LS6417Q-R’*	H3LT6417Q-R’*	33
9000	240	22	37	H3LF9222Q-R’*	H3LS9222Q-R’*	H3LT9222Q-R’*	36
9000	480	22	37	H3LF9422Q-R’*	H3LS9422Q-R’*	H3LT9422Q-R’*	36
12000	240	26	37	H3LF12226Q-R’*	H3LS12226Q-R’*	H3LT12226Q-R’*	30
12000	480	26	37	H3LF12426Q-R’*	H3LS12426Q-R’*	H3LT12426Q-R’*	30
15000	240	31	37	H3LF15231Q-R’*	H3LS15231Q-R’*	H3LT15231Q-R’*	42
15000	480	31	37	H3LF15431Q-R’*	H3LS15431Q-R’*	H3LT15431Q-R’*	42
18000	240	36	50	H3LF18236Q-R.*	H3LS18236Q-R.*	H3LT18236Q-R.*	45
18000	480	36	50	H3LF18436Q-R.*	H3LS18436Q-R.*	H3LT18436Q-R.*	45
24000	240	44	50	H3LF24244Q-R.*	H3LS24244Q-R.*	H3LT24244Q-R.*	54
24000	480	44	50	H3LF24444Q-R.*	H3LS24444Q-R.*	H3LT24444Q-R.*	54
27000	480	50	50	H3LF27450Q-R.*	H3LS27450Q-R.*	H3LT27450Q-R.*	60
30000	480	55	50	H3LF30455Q-R.*	H3LS30455Q-R.*	H3LT30455Q-R.*	66
36000	480	64	50	H3LF36464Q-R.*	H3LS36464Q-R.*	H3LT36464Q-R.*	75

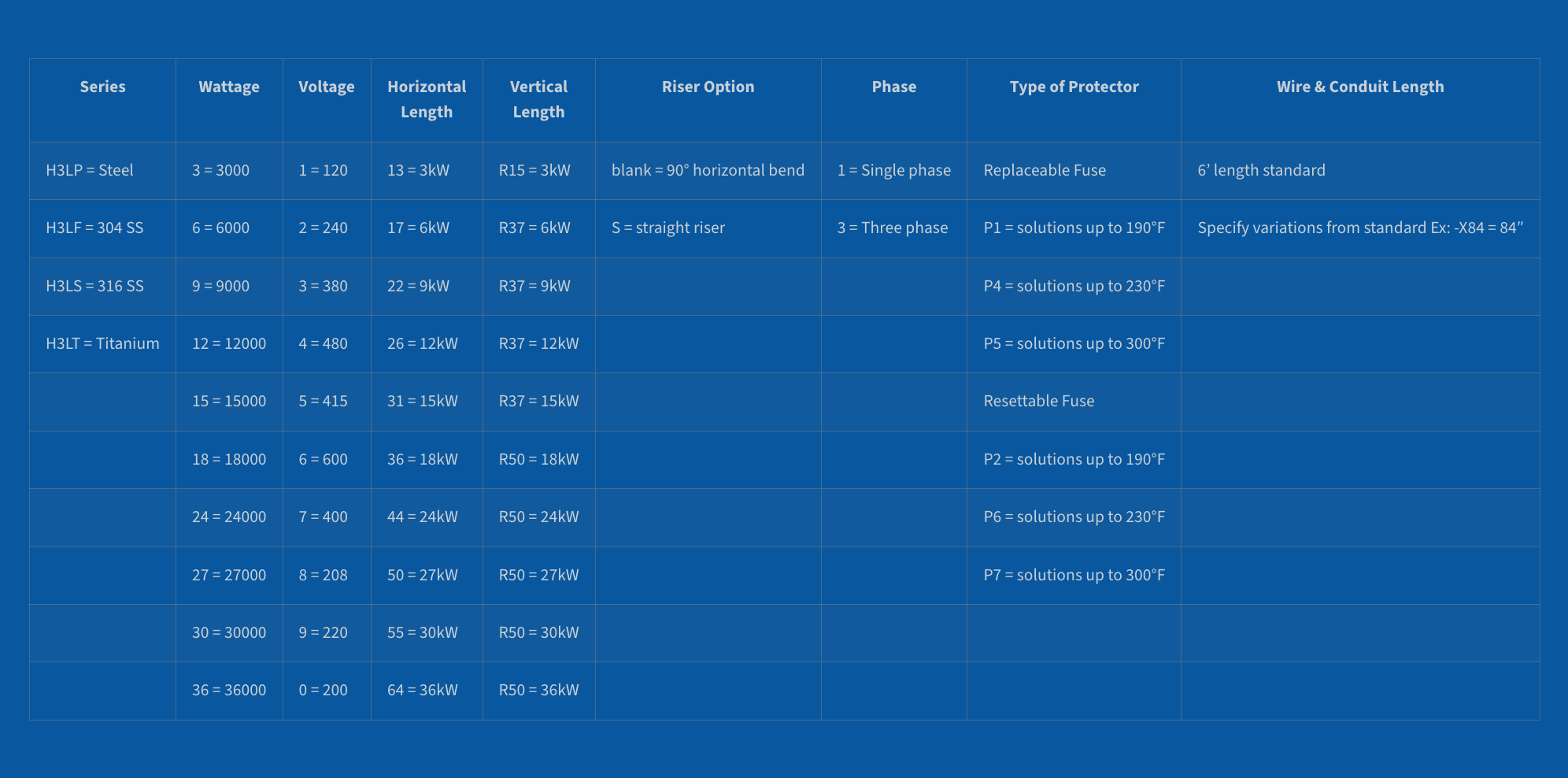

Series	Wattage	Voltage	Horizontal Length	Vertical Length	Riser Option	Phase	Type of Protector	Wire & Conduit Length
H3LP = Steel	3 = 3000	1 = 120	13 = 3kW	R15 = 3kW	blank = 90° horizontal bend	1 = Single phase	Replaceable Fuse	6’ length standard
H3LF = 304 SS	6 = 6000	2 = 240	17 = 6kW	R37 = 6kW	S = straight riser	3 = Three phase	P1 = solutions up to 190°F	Specify variations from standard Ex: -X84 = 84″
H3LS = 316 SS	9 = 9000	3 = 380	22 = 9kW	R37 = 9kW			P4 = solutions up to 230°F
H3LT = Titanium	12 = 12000	4 = 480	26 = 12kW	R37 = 12kW			P5 = solutions up to 300°F
	15 = 15000	5 = 415	31 = 15kW	R37 = 15kW			Resettable Fuse
	18 = 18000	6 = 600	36 = 18kW	R50 = 18kW			P2 = solutions up to 190°F
	24 = 24000	7 = 400	44 = 24kW	R50 = 24kW			P6 = solutions up to 230°F
	27 = 27000	8 = 208	50 = 27kW	R50 = 27kW			P7 = solutions up to 300°F
	30 = 30000	9 = 220	55 = 30kW	R50 = 30kW
	36 = 36000	0 = 200	64 = 36kW	R50 = 36kW
