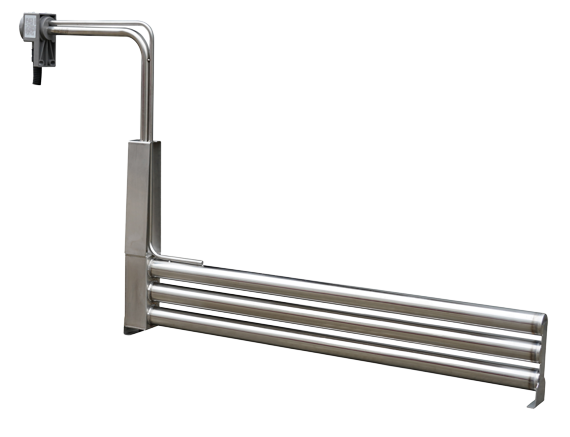

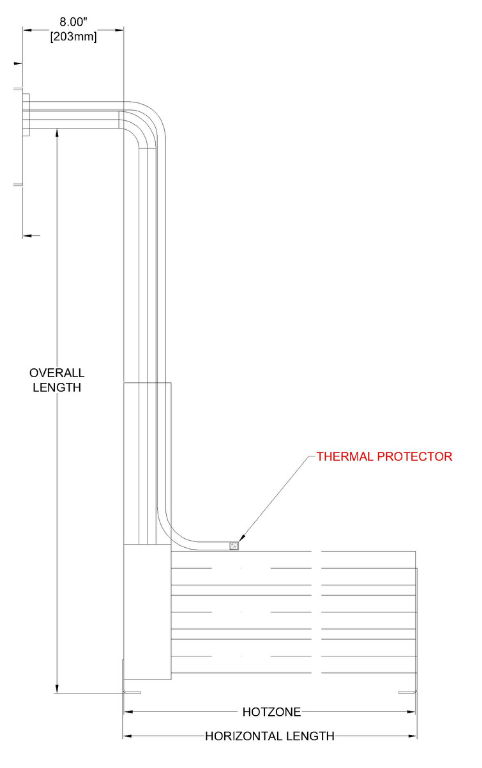

H3LV Vertical Stack Triple Metal L-Shaped Heater

Industrial Metal Heaters for Optimal Performance and Durability

Our industrial metal heaters are designed to meet the most demanding applications, offering exceptional chemical resistance with your choice of durable stainless steel or titanium sheaths. These materials ensure reliable performance even in corrosive environments, making them an ideal solution for your industrial heating needs.



  • Low Watt Density for Extended Lifespan:
    • Standard watt density: 35 w/in² (5 w/cm²)
  • Corrosion-Resistant Terminal Enclosure: The polypropylene (FRPP) terminal enclosure provides enhanced protection against environmental corrosion.
  • Grounded Metal Element: For improved safety and operational efficiency.
  • Advanced Over-Temperature Protection: Safeguard your equipment with replaceable and resettable fuses designed for various temperature thresholds to help protect equipment against low solution level conditions.
  • Versatile Voltage Options: Available in multiple voltage configurations to suit diverse requirements: 120V, 208V, 240V, or 480V. (Other voltages available.)
  • Optional welded metal terminal enclosure: Provides maximum moisture resistance. Only for use with resettable thermal protection devices. Significantly enhances heater performance for hot temperature and large kW applications.
Download PDF Instruction
Download PDF Catalog
  • Advanced Thermal Over-Temperature Protection: Safeguard your equipment with replaceable or resettable fuses designed for various temperature thresholds:
    • Replaceable Fuses:
      • P1: Up to 180°F
      • P4: Up to 230°F
      • P5: Up to 300°F
    • Resettable Fuses:
      • P2: Up to 180°F
      • P6: Up to 230°F
      • P7: Up to 300°F

Key facts

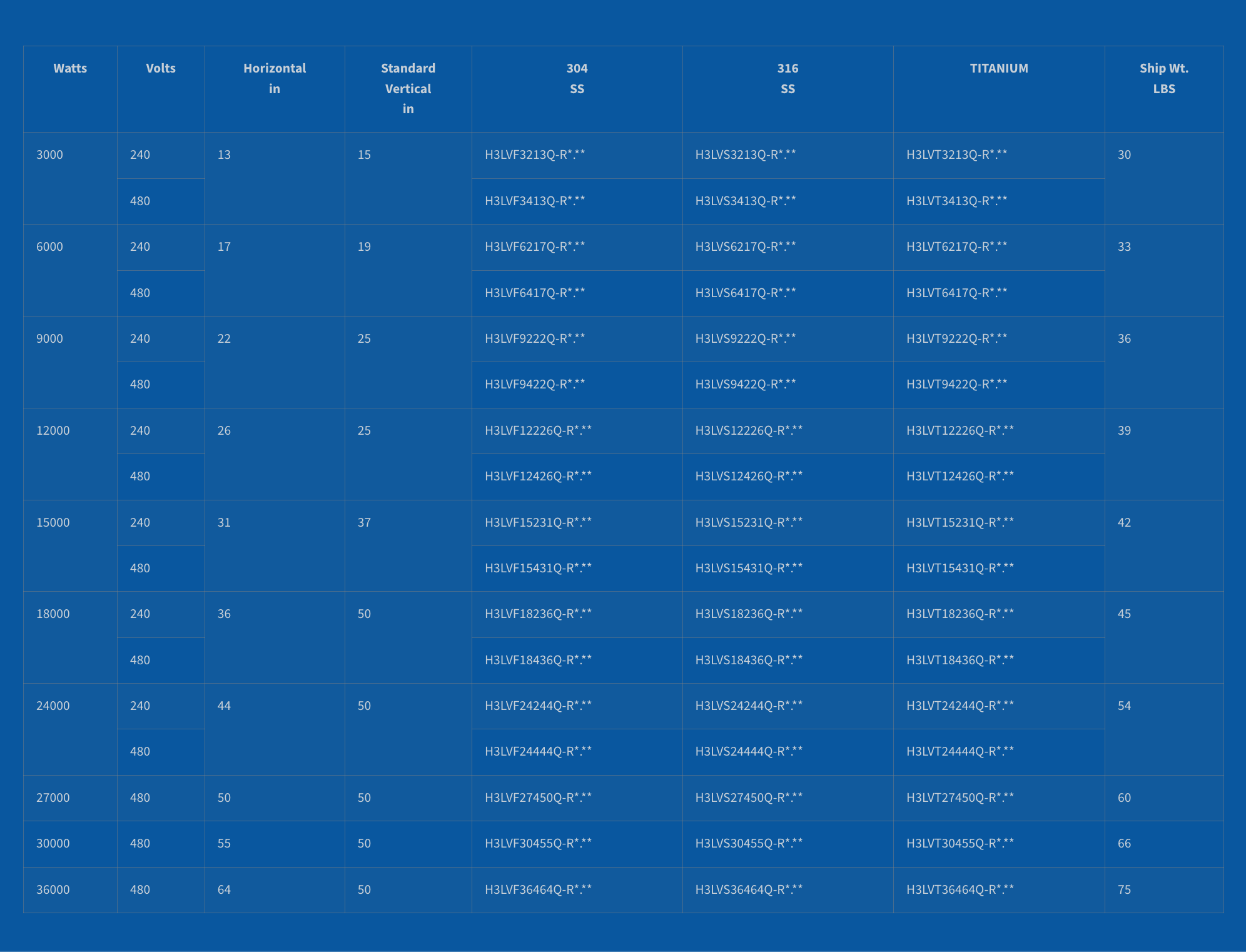

Watts Volts Horizontal
in		 Standard
Vertical
in		 304
SS		 316
SS		 TITANIUM Ship Wt.
LBS
3000
240
13
15
H3LVF3213Q-R*.**
H3LVS3213Q-R*.**
H3LVT3213Q-R*.**
30
480
H3LVF3413Q-R*.**
H3LVS3413Q-R*.**
H3LVT3413Q-R*.**
6000
240
17
19
H3LVF6217Q-R*.**
H3LVS6217Q-R*.**
H3LVT6217Q-R*.**
33
480
H3LVF6417Q-R*.**
H3LVS6417Q-R*.**
H3LVT6417Q-R*.**
9000
240
22
25
H3LVF9222Q-R*.**
H3LVS9222Q-R*.**
H3LVT9222Q-R*.**
36
480
H3LVF9422Q-R*.**
H3LVS9422Q-R*.**
H3LVT9422Q-R*.**
12000
240
26
25
H3LVF12226Q-R*.**
H3LVS12226Q-R*.**
H3LVT12226Q-R*.**
39
480
H3LVF12426Q-R*.**
H3LVS12426Q-R*.**
H3LVT12426Q-R*.**
15000
240
31
37
H3LVF15231Q-R*.**
H3LVS15231Q-R*.**
H3LVT15231Q-R*.**
42
480
H3LVF15431Q-R*.**
H3LVS15431Q-R*.**
H3LVT15431Q-R*.**
18000
240
36
50
H3LVF18236Q-R*.**
H3LVS18236Q-R*.**
H3LVT18236Q-R*.**
45
480
H3LVF18436Q-R*.**
H3LVS18436Q-R*.**
H3LVT18436Q-R*.**
24000
240
44
50
H3LVF24244Q-R*.**
H3LVS24244Q-R*.**
H3LVT24244Q-R*.**
54
480
H3LVF24444Q-R*.**
H3LVS24444Q-R*.**
H3LVT24444Q-R*.**
27000
480
50
50
H3LVF27450Q-R*.**
H3LVS27450Q-R*.**
H3LVT27450Q-R*.**
60
30000
480
55
50
H3LVF30455Q-R*.**
H3LVS30455Q-R*.**
H3LVT30455Q-R*.**
66
36000
480
64
50
H3LVF36464Q-R*.**
H3LVS36464Q-R*.**
H3LVT36464Q-R*.**
75

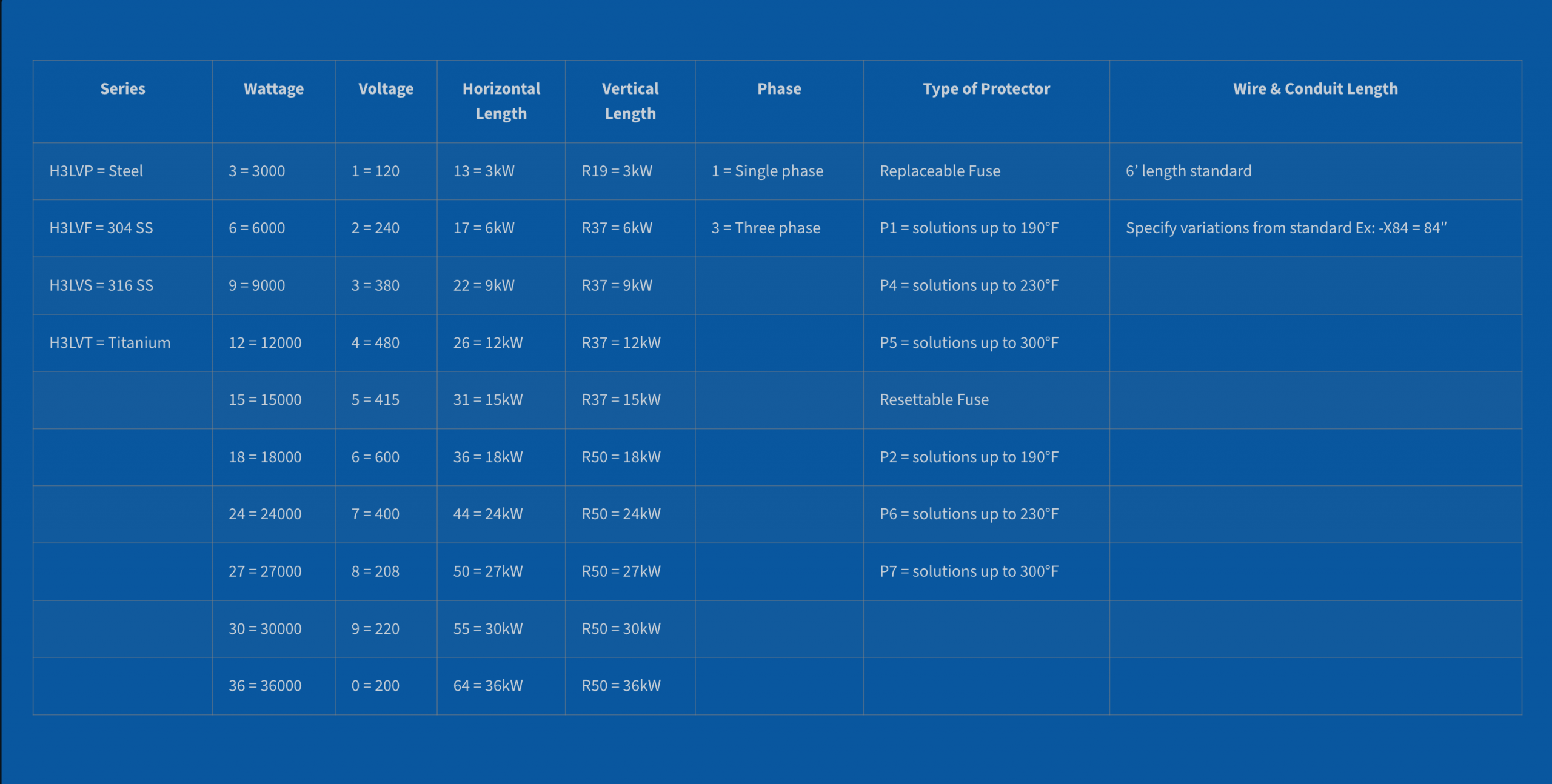

Series Wattage Voltage Horizontal
Length		 Vertical
Length		 Phase Type of Protector Wire & Conduit Length
H3LVP = Steel
3 = 3000
1 = 120
13 = 3kW
R19 = 3kW
1 = Single phase
Replaceable Fuse
6’ length standard
H3LVF = 304 SS
6 = 6000
2 = 240
17 = 6kW
R37 = 6kW
3 = Three phase
P1 = solutions up to 190°F
Specify variations from standard Ex: -X84 = 84″
H3LVS = 316 SS
9 = 9000
3 = 380
22 = 9kW
R37 = 9kW
P4 = solutions up to 230°F
H3LVT = Titanium
12 = 12000
4 = 480
26 = 12kW
R37 = 12kW
P5 = solutions up to 300°F
15 = 15000
5 = 415
31 = 15kW
R37 = 15kW
Resettable Fuse
18 = 18000
6 = 600
36 = 18kW
R50 = 18kW
P2 = solutions up to 190°F
24 = 24000
7 = 400
44 = 24kW
R50 = 24kW
P6 = solutions up to 230°F
27 = 27000
8 = 208
50 = 27kW
R50 = 27kW
P7 = solutions up to 300°F
30 = 30000
9 = 220
55 = 30kW
R50 = 30kW
36 = 36000
0 = 200
64 = 36kW
R50 = 36kW
