Home Product H3HS Three Element 316 Stainless Steel Heater

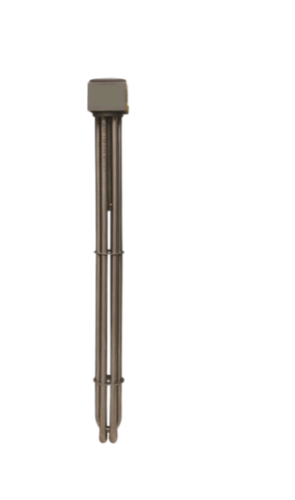

H3HS Three Element 316 Stainless Steel Heater

Industrial Metal Heaters for Optimal Performance and Durability

Our industrial metal heaters are designed to meet the most demanding applications, offering exceptional chemical resistance with your choice of durable stainless steel or titanium sheaths. These materials ensure reliable performance even in corrosive environments, making them an ideal solution for your industrial heating needs.



  • Low Watt Density for Extended Lifespan:
    • Watt density: 40 w/in² (6 w/cm²)
  • Corrosion-Resistant Terminal Enclosure: The polypropylene (FRPP) terminal enclosure provides enhanced protection against environmental corrosion.
  • Grounded Metal Element: For improved safety and operational efficiency.
  • Advanced Over-Temperature Protection: Safeguard your equipment with replaceable and resettable fuses designed for various temperature thresholds to help protect equipment against low solution level conditions.
  • Versatile Voltage Options: Available in multiple voltage configurations to suit diverse requirements: 120V, 208V, 240V, or 480V. (Other voltages available.)
  • Optional welded metal terminal enclosure: Provides maximum moisture resistance. Only for use with resettable thermal protection devices. Significantly enhances heater performance for hot temperature and large kW applications.
Download PDF Instruction
Download PDF Catalog
  • Advanced Thermal Over-Temperature Protection: Safeguard your equipment with replaceable or resettable fuses designed for various temperature thresholds:
    • Replaceable Fuses:
      • P1: Up to 180°F
      • P4: Up to 230°F
      • P5: Up to 300°F
    • Resettable Fuses:
      • P2: Up to 180°F
      • P6: Up to 230°F
      • P7: Up to 300°F

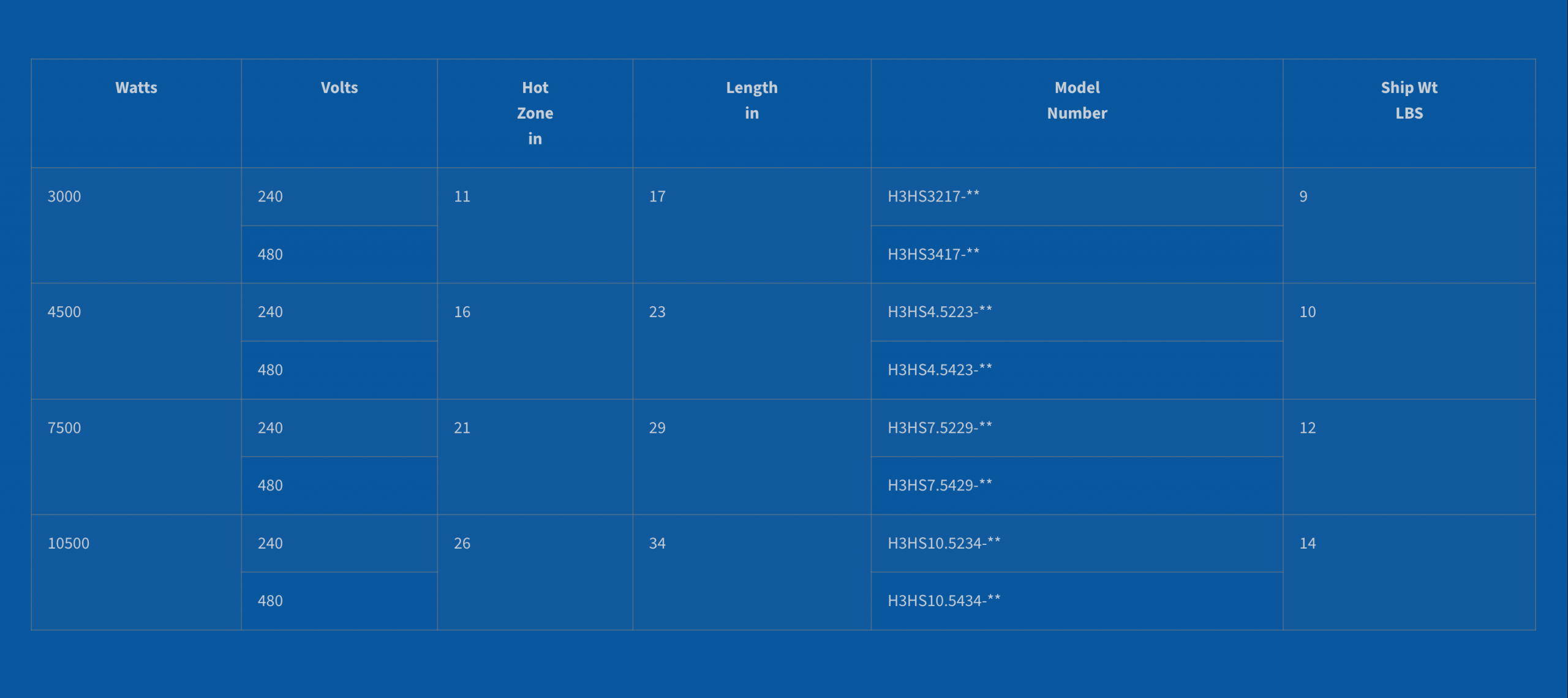

Key facts

Watts Volts Hot
Zone
in		 Length
in		 Model
Number		 Ship Wt
LBS
3000
240
11
17
H3HS3217-**
9
480
H3HS3417-**
4500
240
16
23
H3HS4.5223-**
10
480
H3HS4.5423-**
7500
240
21
29
H3HS7.5229-**
12
480
H3HS7.5429-**
10500
240
26
34
H3HS10.5234-**
14
480
H3HS10.5434-**

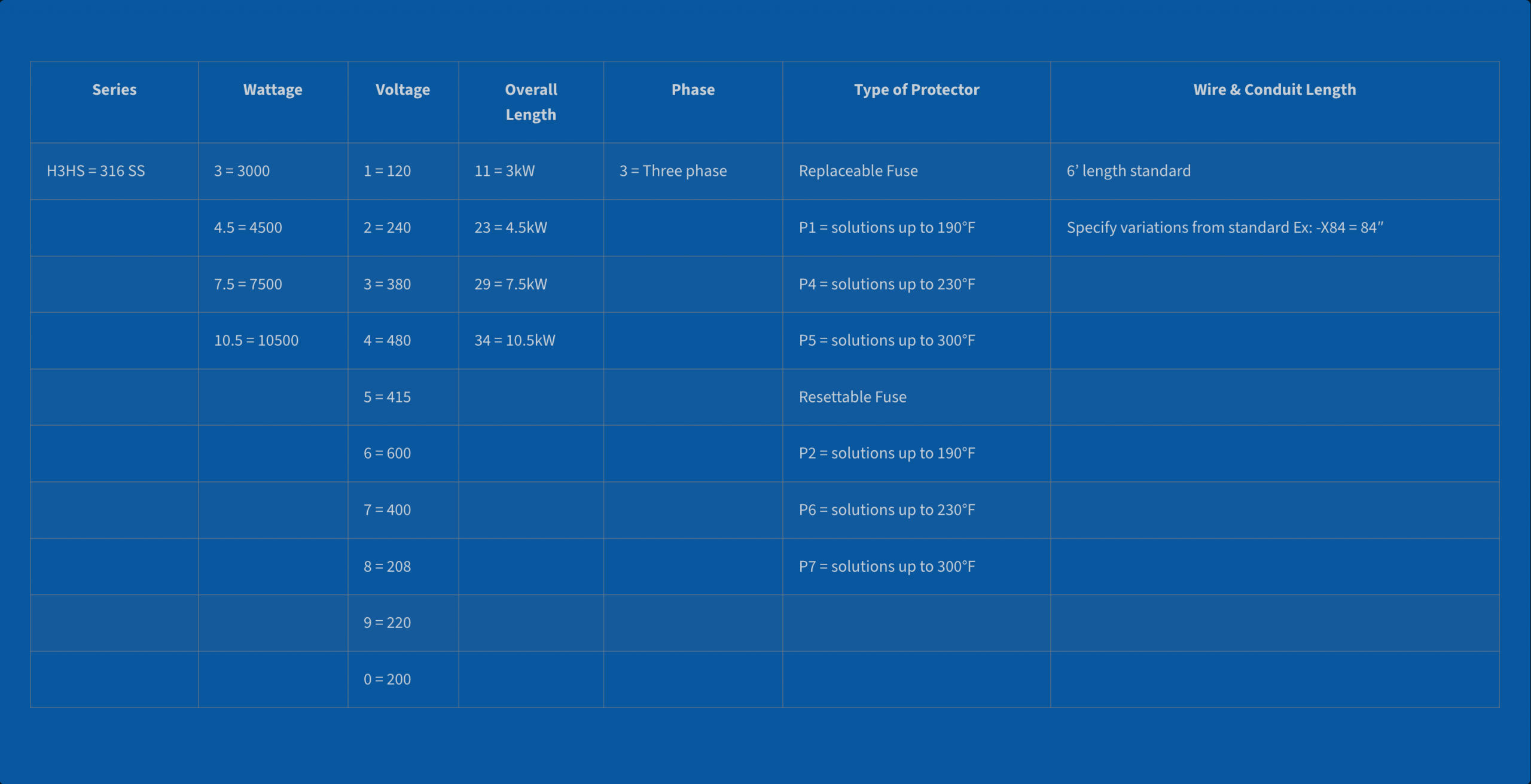

Series Wattage Voltage Overall
Length		 Phase Type of Protector Wire & Conduit Length
H3HS = 316 SS
3 = 3000
1 = 120
11 = 3kW
3 = Three phase
Replaceable Fuse
6’ length standard
4.5 = 4500
2 = 240
23 = 4.5kW
P1 = solutions up to 190°F
Specify variations from standard Ex: -X84 = 84″
7.5 = 7500
3 = 380
29 = 7.5kW
P4 = solutions up to 230°F
10.5 = 10500
4 = 480
34 = 10.5kW
P5 = solutions up to 300°F
5 = 415
Resettable Fuse
6 = 600
P2 = solutions up to 190°F
7 = 400
P6 = solutions up to 230°F
8 = 208
P7 = solutions up to 300°F
9 = 220
0 = 200
