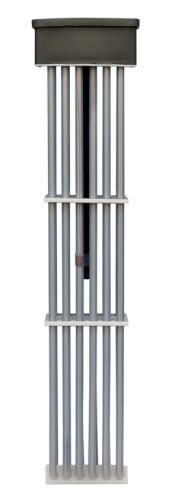

6HZ Six Element PTFE Heater

HeaterTek’s PTFE fluoropolymer heaters are engineered with precision and reliability to deliver unparalleled performance in challenging environments. Explore the superior features that make our heaters stand out in the industry:

Exceptional Chemical Resistance: Designed to withstand most aqueous chemistries, our PTFE fluoropolymer heaters excel in highly corrosive and demanding applications.

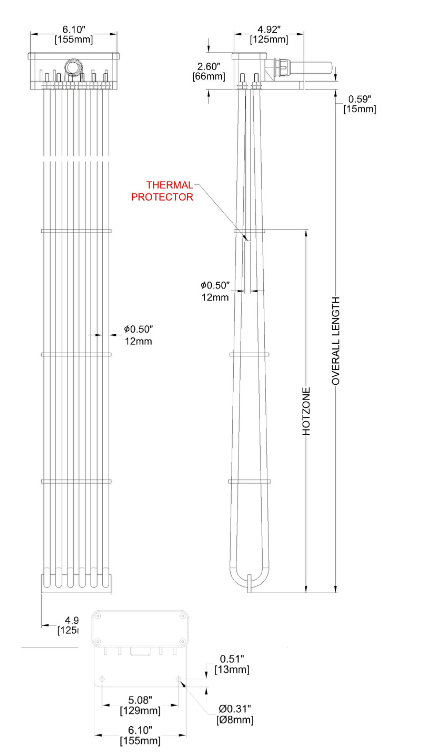

Robust Construction: Featuring heavy-wall PTFE tubing encasing a stainless steel element, these heaters ensure maximum durability and safety.
Optimized Watt Density: With a low watt density of 10 w/in² (1.5w/cm²), our heaters are crafted for extended lifespan and efficient performance.
Corrosion-Resistant Terminal Enclosure: FRPP flame resistant polypropylene.
Comprehensive Accessories: Every unit includes a 6’ standard wire and conduit for hassle-free installation.
Enhanced Safety: Grounded metal elements provide added security and operational stability.
Voltage Versatility: Available in multiple voltage options: 120, 208, 240, and 480, ensuring compatibility with various systems.
Customizable Guards: Optional guards are available for additional protection and tailored applications.
Advanced Over-Temperature Protection: Safeguard your equipment with replaceable and resettable fuses designed for various temperature thresholds to help protect equipment against low solution level conditions.

Advanced Over-Temperature Protection: Safeguard your equipment with replaceable and resettable fuses designed for various temperature thresholds:
- Replaceable Fuses:
  - P1: Up to 190°F
  - P4: Up to 220°F
- Resettable Fuses:
  - P2: Up to 190°F
  - P8: Up to 210°F
  - P6: Up to 230°F

Key facts

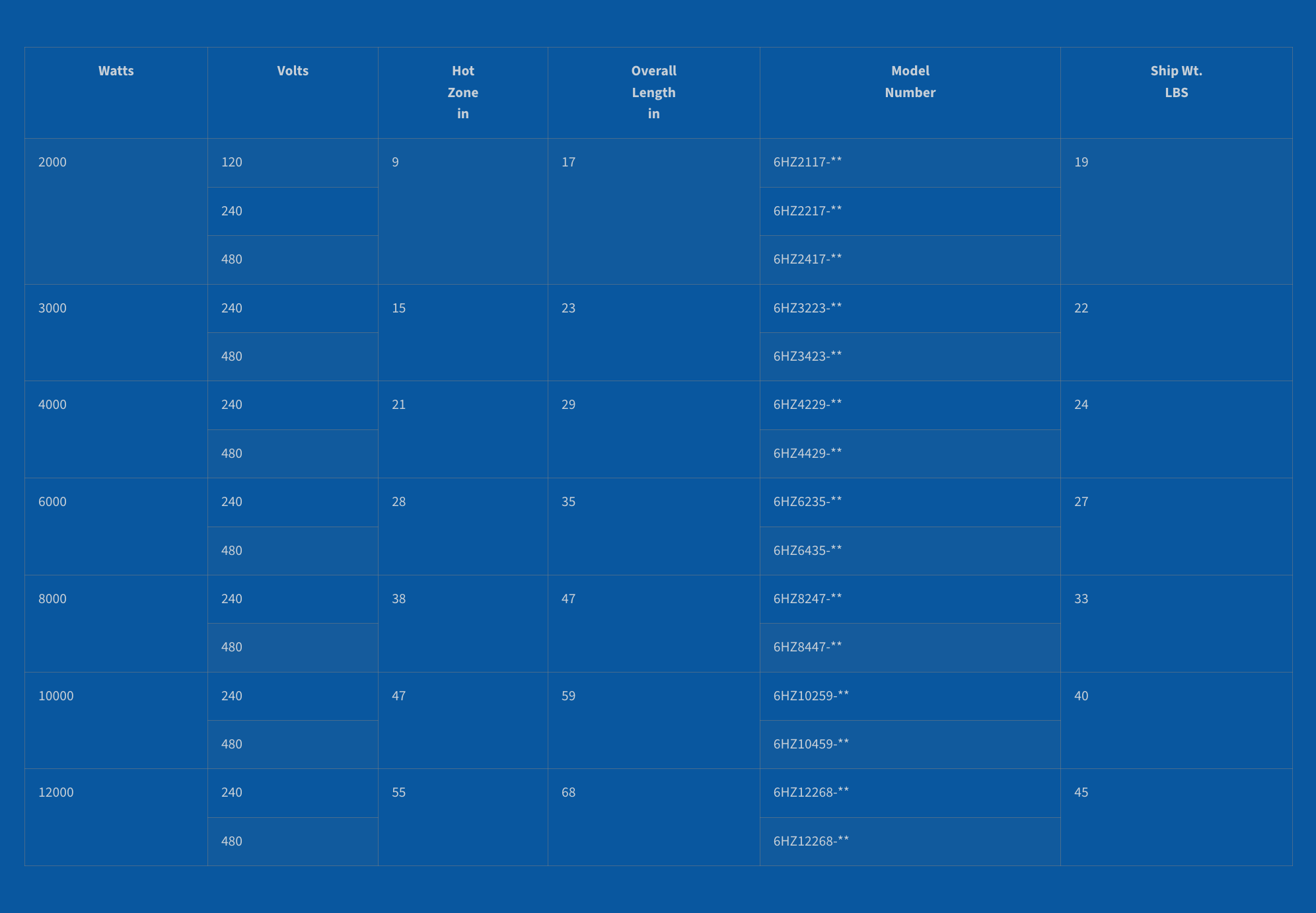

Watts	Volts	Hot Zone in	Overall Length in	Model Number	Ship Wt. LBS
2000	120	9	17	6HZ2117-**	19
	240			6HZ2217-**
	480			6HZ2417-**
3000	240	15	23	6HZ3223-**	22
3000	480	15	23	6HZ3423-**	22
4000	240	21	29	6HZ4229-**	24
4000	480	21	29	6HZ4429-**	24
6000	240	28	35	6HZ6235-**	27
6000	480	28	35	6HZ6435-**	27
8000	240	38	47	6HZ8247-**	33
8000	480	38	47	6HZ8447-**	33
10000	240	47	59	6HZ10259-**	40
10000	480	47	59	6HZ10459-**	40
12000	240	55	68	6HZ12268-**	45
12000	480	55	68	6HZ12268-**	45

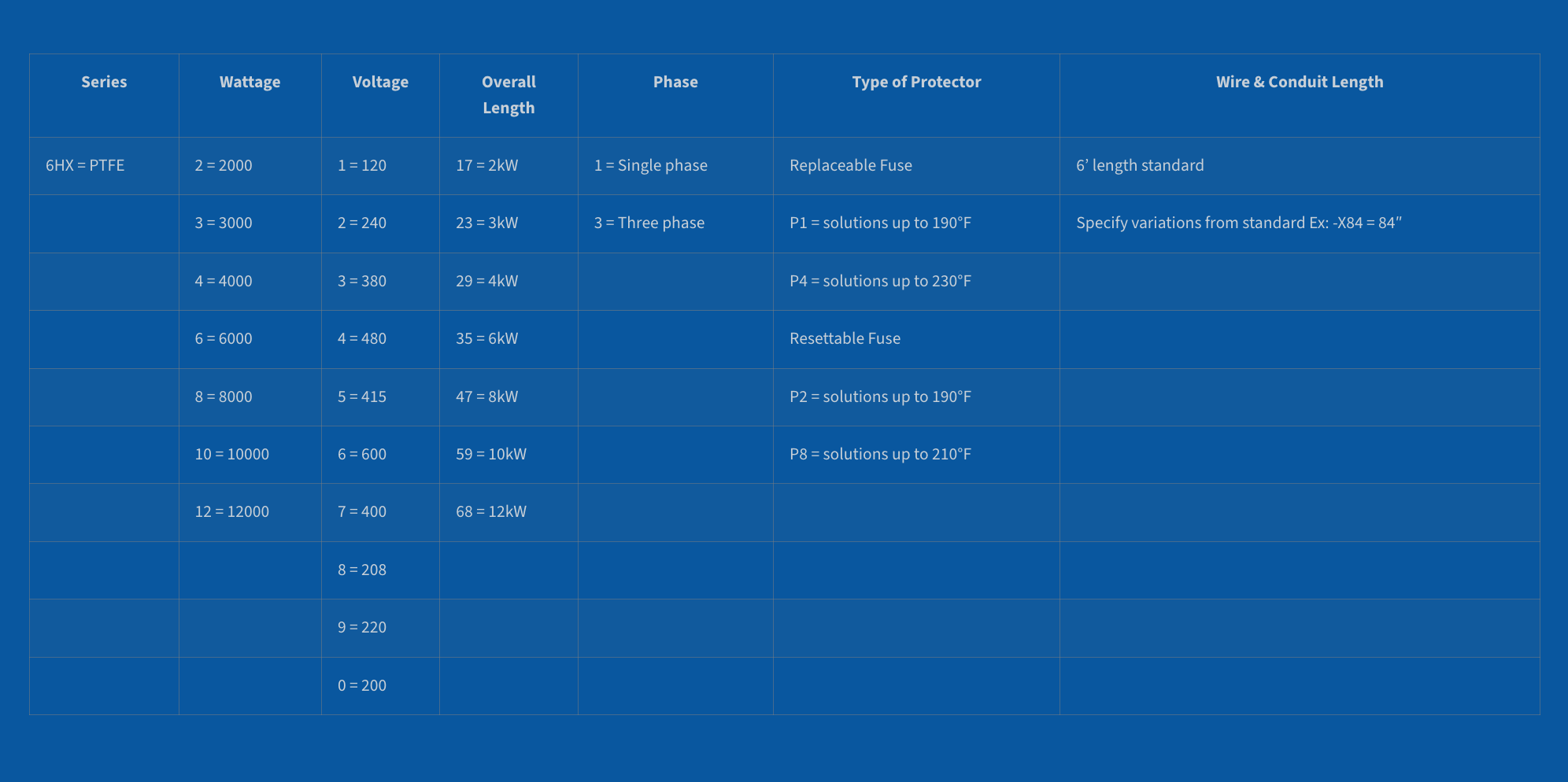

Series	Wattage	Voltage	Overall Length	Phase	Type of Protector	Wire & Conduit Length
6HX = PTFE	2 = 2000	1 = 120	17 = 2kW	1 = Single phase	Replaceable Fuse	6’ length standard
	3 = 3000	2 = 240	23 = 3kW	3 = Three phase	P1 = solutions up to 190°F	Specify variations from standard Ex: -X84 = 84″
	4 = 4000	3 = 380	29 = 4kW		P4 = solutions up to 230°F
	6 = 6000	4 = 480	35 = 6kW		Resettable Fuse
	8 = 8000	5 = 415	47 = 8kW		P2 = solutions up to 190°F
	10 = 10000	6 = 600	59 = 10kW		P8 = solutions up to 210°F
	12 = 12000	7 = 400	68 = 12kW
		8 = 208
		9 = 220
		0 = 200
