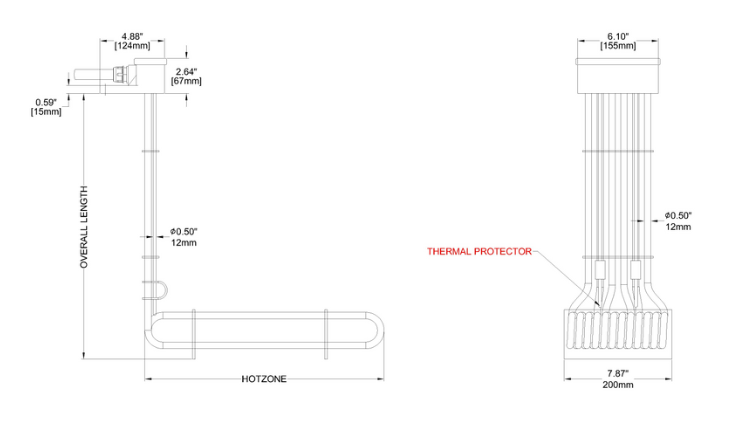

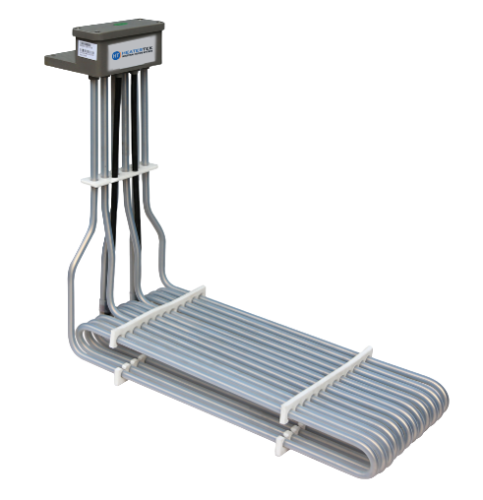

3HZOL Multi Element L-Shaped PTFE Heater

HeaterTek’s PTFE fluoropolymer heaters are engineered with precision and reliability to deliver unparalleled performance in challenging environments. Explore the superior features that make our heaters stand out in the industry:



  • Exceptional Chemical Resistance: Designed to withstand most aqueous chemistries, our PTFE fluoropolymer heaters excel in highly corrosive and demanding applications.
  • Robust Construction: Featuring heavy-wall PTFE tubing encasing a stainless steel element, these heaters ensure maximum durability and safety.
  • Optimized Watt Density: With a low watt density of 10 w/in² (1.5w/cm²), our heaters are crafted for extended lifespan and efficient performance.
  • Corrosion-Resistant Terminal Enclosure: FRPP flame resistant polypropylene.
  • Comprehensive Accessories: Every unit includes a 6’ standard wire and conduit for hassle-free installation.
  • Enhanced Safety: Grounded metal elements provide added security and operational stability.
  • Voltage Versatility: Available in multiple voltage options: 120, 208, 240, and 480, ensuring compatibility with various systems.
  • Customizable Guards: Optional guards are available for additional protection and tailored applications.
  • Advanced Over-Temperature Protection: Safeguard your equipment with replaceable and resettable fuses designed for various temperature thresholds to help protect equipment against low solution level conditions.
Download PDF Instruction
Download PDF Catalog
  • Advanced Over-Temperature Protection: Safeguard your equipment with replaceable and resettable fuses designed for various temperature thresholds:
    • Replaceable Fuses:
      • P1: Up to 190°F
      • P4: Up to 220°F
    • Resettable Fuses:
      • P2: Up to 190°F
      • P8: Up to 210°F
      • P6: Up to 230°F

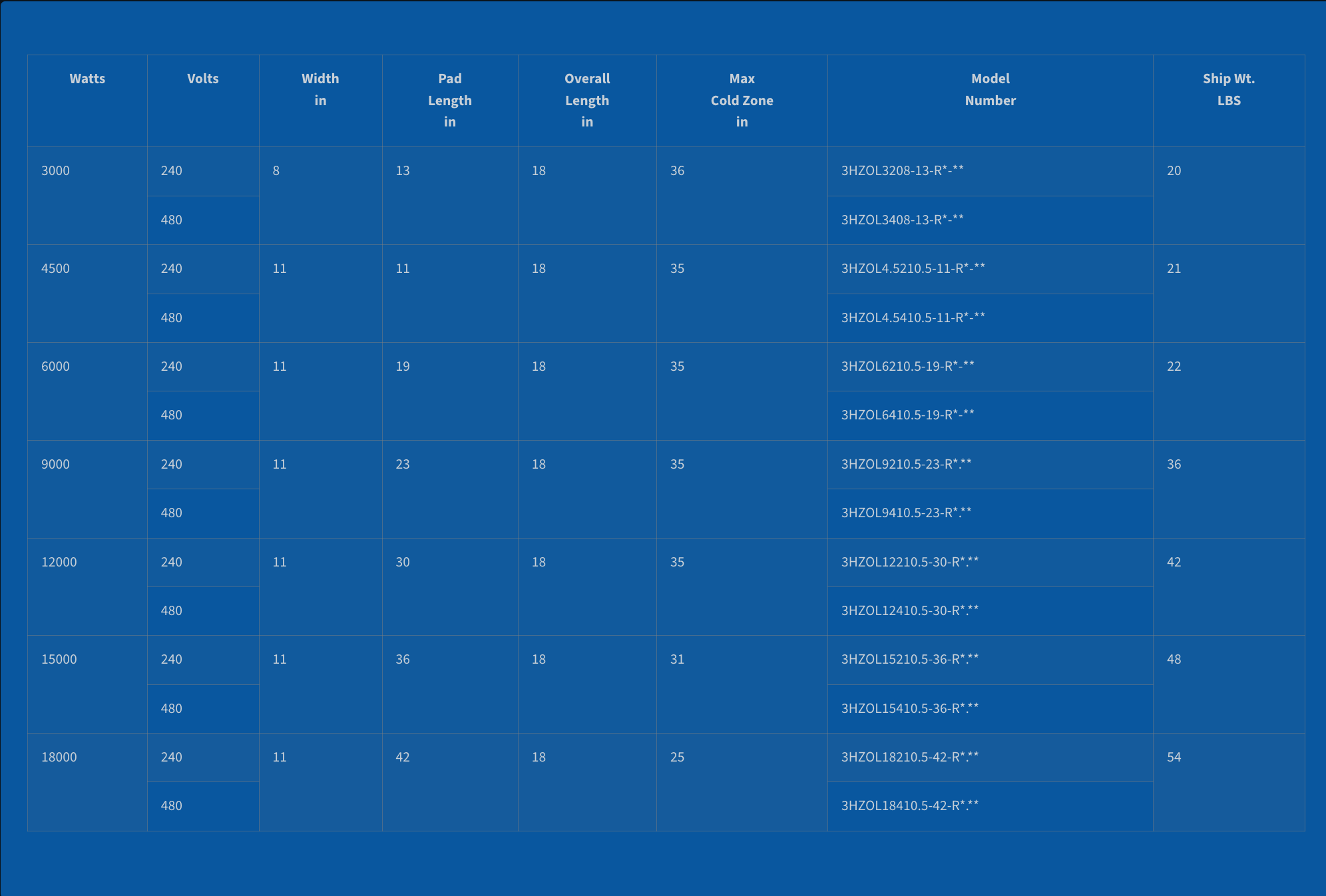

Key facts

Watts Volts Width
in		 Pad
Length
in		 Overall
Length
in		 Max
Cold Zone
in		 Model
Number		 Ship Wt.
LBS
3000
240
8
13
18
36
3HZOL3208-13-R*-**
20
480
3HZOL3408-13-R*-**
4500
240
11
11
18
35
3HZOL4.5210.5-11-R*-**
21
480
3HZOL4.5410.5-11-R*-**
6000
240
11
19
18
35
3HZOL6210.5-19-R*-**
22
480
3HZOL6410.5-19-R*-**
9000
240
11
23
18
35
3HZOL9210.5-23-R*.**
36
480
3HZOL9410.5-23-R*.**
12000
240
11
30
18
35
3HZOL12210.5-30-R*.**
42
480
3HZOL12410.5-30-R*.**
15000
240
11
36
18
31
3HZOL15210.5-36-R*.**
48
480
3HZOL15410.5-36-R*.**
18000
240
11
42
18
25
3HZOL18210.5-42-R*.**
54
480
3HZOL18410.5-42-R*.**

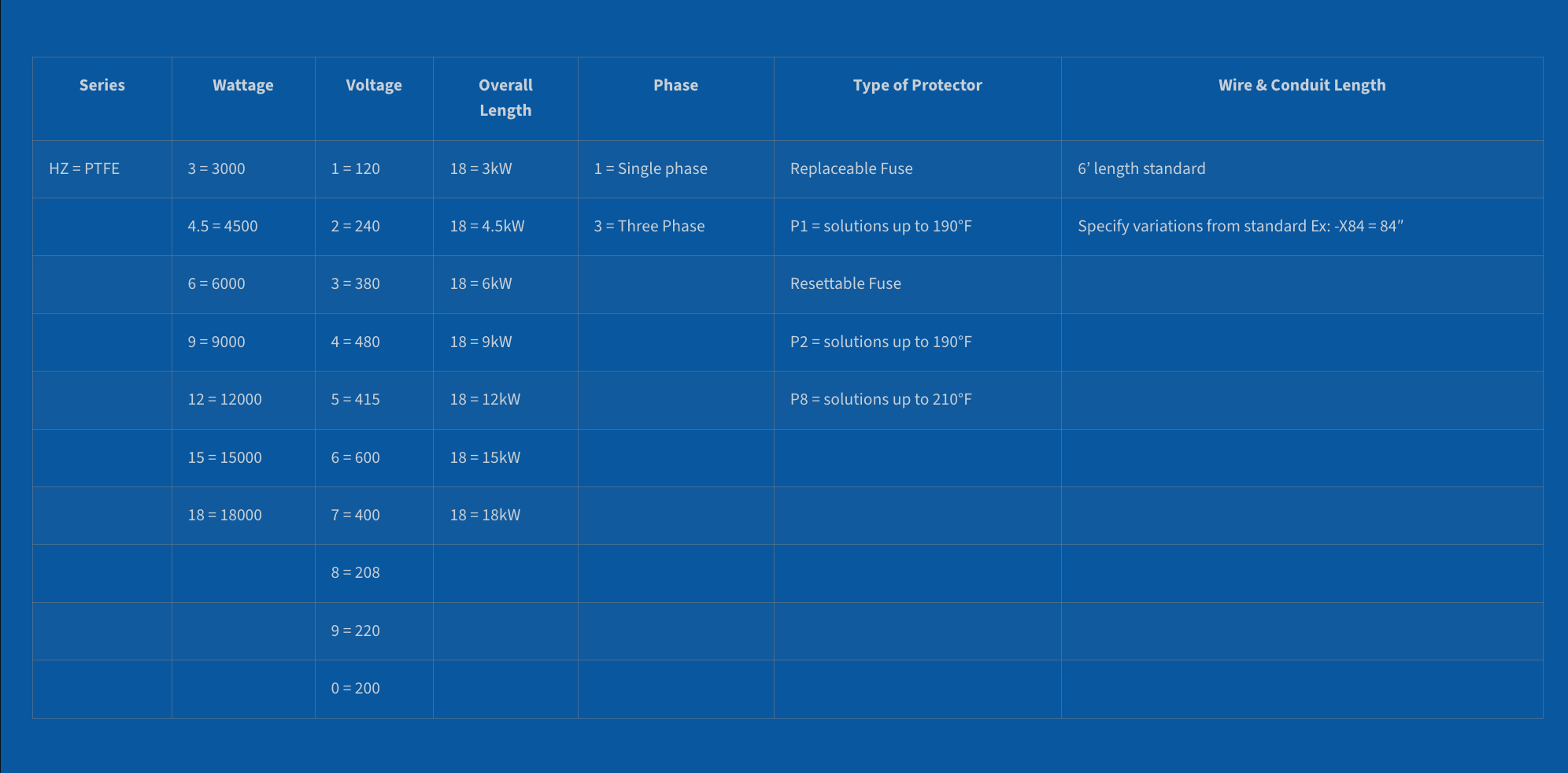

Series Wattage Voltage Overall
Length		 Phase Type of Protector Wire & Conduit Length
HZ = PTFE
3 = 3000
1 = 120
18 = 3kW
1 = Single phase
Replaceable Fuse
6’ length standard
4.5 = 4500
2 = 240
18 = 4.5kW
3 = Three Phase
P1 = solutions up to 190°F
Specify variations from standard Ex: -X84 = 84″
6 = 6000
3 = 380
18 = 6kW
Resettable Fuse
9 = 9000
4 = 480
18 = 9kW
P2 = solutions up to 190°F
12 = 12000
5 = 415
18 = 12kW
P8 = solutions up to 210°F
15 = 15000
6 = 600
18 = 15kW
18 = 18000
7 = 400
18 = 18kW
8 = 208
9 = 220
0 = 200
