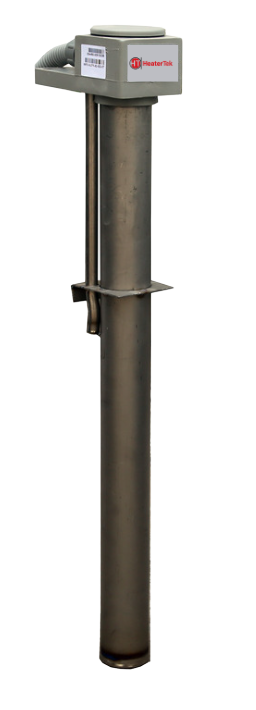

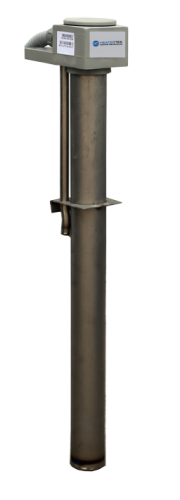

HD Derated Metal
Over the Side Heater
- Excellent chemical resistance with stainless steel or titanium sheaths
- Low watt density for long life: 35 w/in2 (5w/cm2) for standard watt density,
- 17 w/in2 (2.5w/cm2) for deratedCorrosion resistant PP terminal enclosure
- Grounded metal element
- Voltages: 120, 208, 240, or 480
- Thermal over-temperature protection:
- P1 replaceable fuse up to 180° F
- P4 replaceable fuse up to 230° F
- P5 replaceable fuse up to 300° F
- P2 resettable fuse up to 180° F
- P6 resettable fuse up to 230° F
- P7 resettable fuse up to 300° F

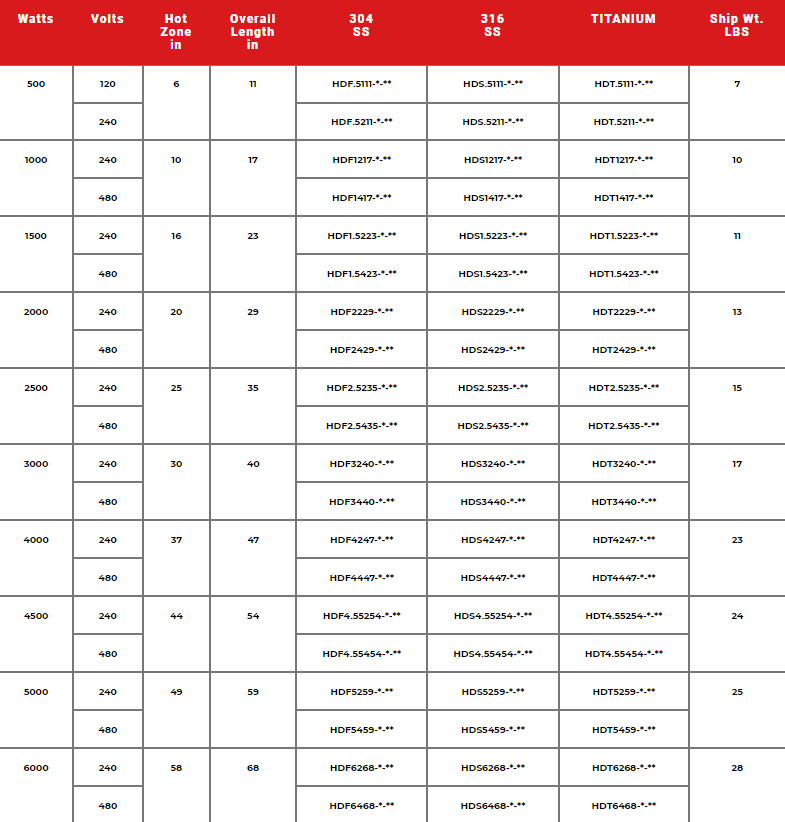

| Watts | Volts |
Hot Zone in |
Overall Length in |
304 SS |
316 SS |
TITANIUM |
Ship Wt. LBS |
|---|---|---|---|---|---|---|---|
|
500 |
120 |
6 |
11 |
HDF.5111-*-** |
HDS.5111-*-** |
HDT.5111-*-** |
7 |
|
240 |
HDF.5211-*-** |
HDS.5211-*-** |
HDT.5211-*-** |
||||
|
1000 |
240 |
10 |
17 |
HDF1217-*-** |
HDS1217-*-** |
HDT1217-*-** |
10 |
|
480 |
HDF1417-*-** |
HDS1417-*-** |
HDT1417-*-** |
||||
|
1500 |
240 |
16 |
23 |
HDF1.5223-*-** |
HDS1.5223-*-** |
HDT1.5223-*-** |
11 |
|
480 |
HDF1.5423-*-** |
HDS1.5423-*-** |
HDT1.5423-*-** |
||||
|
2000 |
240 |
20 |
29 |
HDF2229-*-** |
HDS2229-*-** |
HDT2229-*-** |
13 |
|
480 |
HDF2429-*-** |
HDS2429-*-** |
HDT2429-*-** |
||||
|
2500 |
240 |
25 |
35 |
HDF2.5235-*-** |
HDS2.5235-*-** |
HDT2.5235-*-** |
15 |
|
480 |
HDF2.5435-*-** |
HDS2.5435-*-** |
HDT2.5435-*-** |
||||
|
3000 |
240 |
30 |
40 |
HDF3240-*-** |
HDS3240-*-** |
HDT3240-*-** |
17 |
|
480 |
HDF3440-*-** |
HDS3440-*-** |
HDT3440-*-** |
||||
|
4000 |
240 |
37 |
47 |
HDF4247-*-** |
HDS4247-*-** |
HDT4247-*-** |
23 |
|
480 |
HDF4447-*-** |
HDS4447-*-** |
HDT4447-*-** |
||||
|
4500 |
240 |
44 |
54 |
HDF4.55254-*-** |
HDS4.55254-*-** |
HDT4.55254-*-** |
24 |
|
480 |
HDF4.55454-*-** |
HDS4.55454-*-** |
HDT4.55454-*-** |
||||
|
5000 |
240 |
49 |
59 |
HDF5259-*-** |
HDS5259-*-** |
HDT5259-*-** |
25 |
|
480 |
HDF5459-*-** |
HDS5459-*-** |
HDT5459-*-** |
||||
|
6000 |
240 |
58 |
68 |
HDF6268-*-** |
HDS6268-*-** |
HDT6268-*-** |
28 |
|
480 |
HDF6468-*-** |
HDS6468-*-** |
HDT6468-*-** |

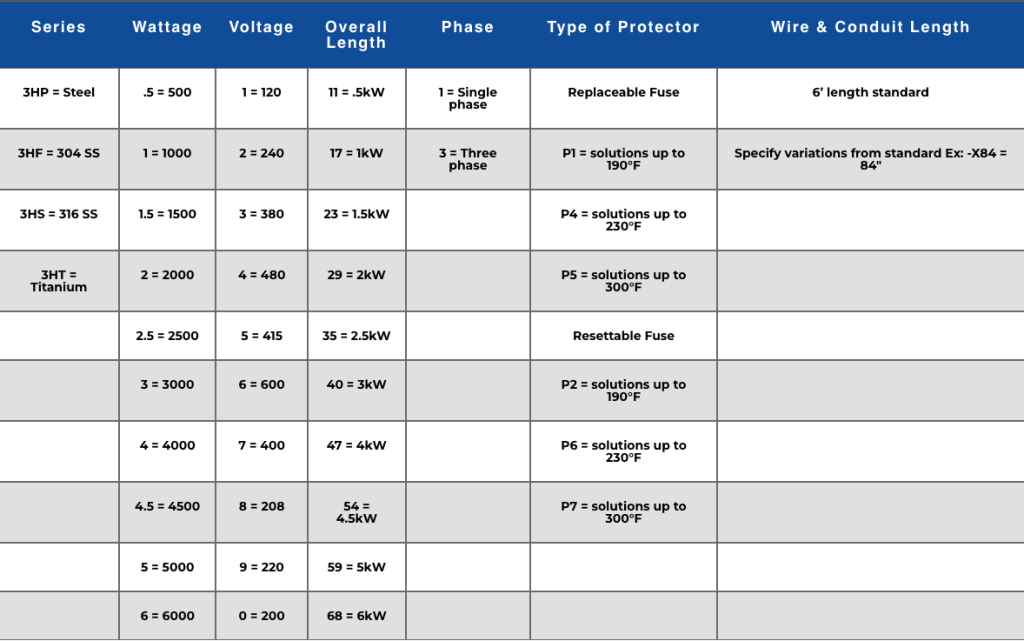

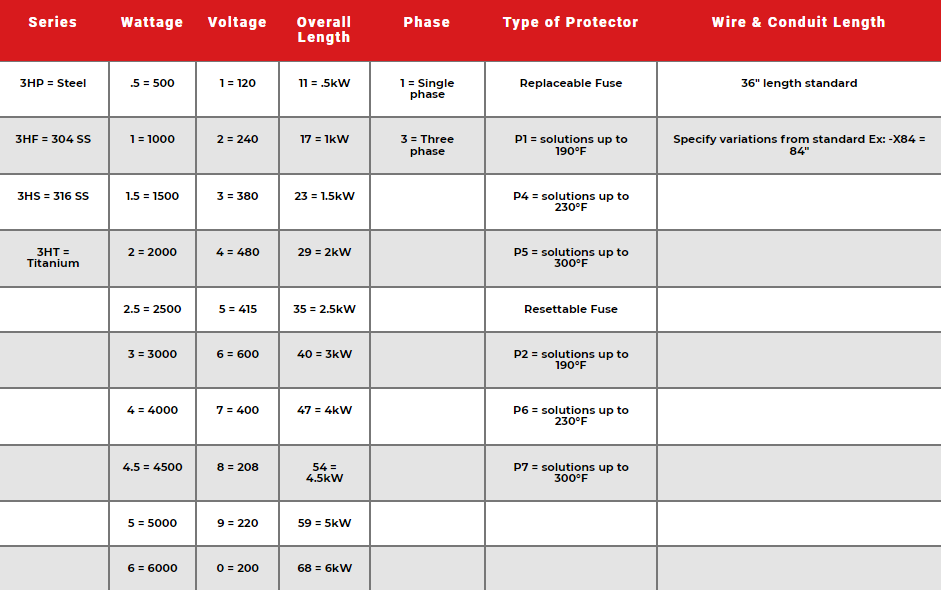

| Series | Wattage | Voltage |
Overall Length |
Phase | Type of Protector | Wire & Conduit Length |
|---|---|---|---|---|---|---|
|
3HP = Steel |
.5 = 500 |
1 = 120 |
11 = .5kW |
1 = Single phase |
Replaceable Fuse |
36″ length standard |
|
3HF = 304 SS |
1 = 1000 |
2 = 240 |
17 = 1kW |
3 = Three phase |
P1 = solutions up to 190°F |
Specify variations from standard Ex: -X84 = 84″ |
|
3HS = 316 SS |
1.5 = 1500 |
3 = 380 |
23 = 1.5kW |
|
P4 = solutions up to 230°F |
|
|
3HT = Titanium |
2 = 2000 |
4 = 480 |
29 = 2kW |
|
P5 = solutions up to 300°F |
|
|
|
2.5 = 2500 |
5 = 415 |
35 = 2.5kW |
|
Resettable Fuse |
|
|
|
3 = 3000 |
6 = 600 |
40 = 3kW |
|
P2 = solutions up to 190°F |
|
|
|
4 = 4000 |
7 = 400 |
47 = 4kW |
|
P6 = solutions up to 230°F |
|
|
|
4.5 = 4500 |
8 = 208 |
54 = 4.5kW |
|
P7 = solutions up to 300°F |
|
|
|
5 = 5000 |
9 = 220 |
59 = 5kW |
|
|
|
|
|
6 = 6000 |
0 = 200 |
68 = 6kW |
|
|
|
