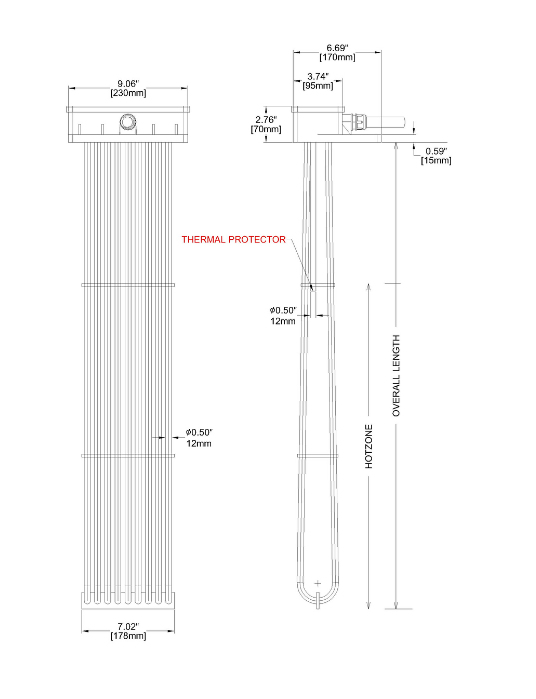

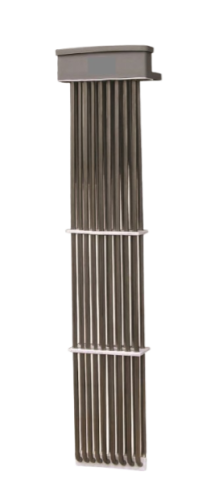

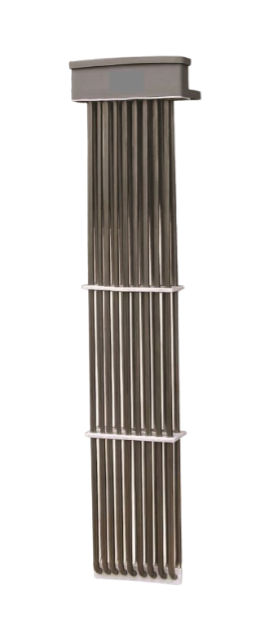

H9HS Nine Element 316
Stainless Steel Heater
- Excellent chemical resistance with stainless steel or titanium sheaths
- Low watt density for long life: 35 w/in2 (5w/cm2) for standard watt density,
- 17 w/in2 (2.5w/cm2) for deratedCorrosion resistant PP terminal enclosure
- Grounded metal element
- Voltages: 120, 208, 240, or 480
- Thermal over-temperature protection:
- P1 replaceable fuse up to 180° F
- P4 replaceable fuse up to 230° F
- P5 replaceable fuse up to 300° F
- P2 resettable fuse up to 180° F
- P6 resettable fuse up to 230° F
- P7 resettable fuse up to 300° F

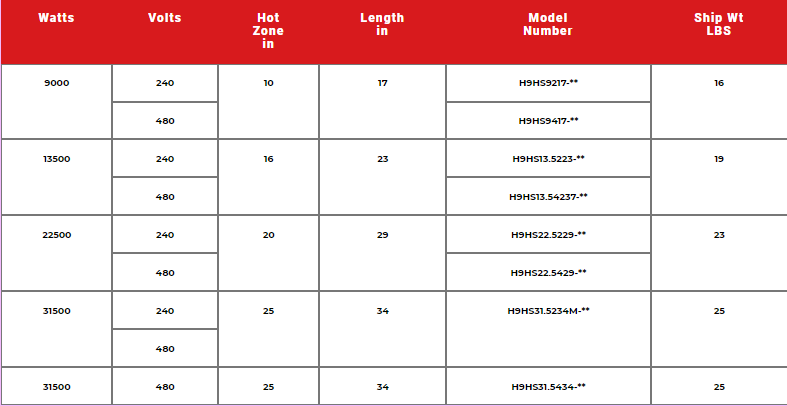

| Watts | Volts |
Hot Zone in |
Length in |
Model Number |
Ship Wt LBS |
|---|---|---|---|---|---|
|
9000 |
240 |
10 |
17 |
H9HS9217-** |
16 |
|
480 |
H9HS9417-** |
||||
|
13500 |
240 |
16 |
23 |
H9HS13.5223-** |
19 |
|
480 |
H9HS13.54237-** |
||||
|
22500 |
240 |
20 |
29 |
H9HS22.5229-** |
23 |
|
480 |
H9HS22.5429-** |
||||
|
31500 |
240 |
25 |
34 |
H9HS31.5234M-** |
25 |
|
480 |
|||||
|
31500 |
480 |
25 |
34 |
H9HS31.5434-** |
25 |

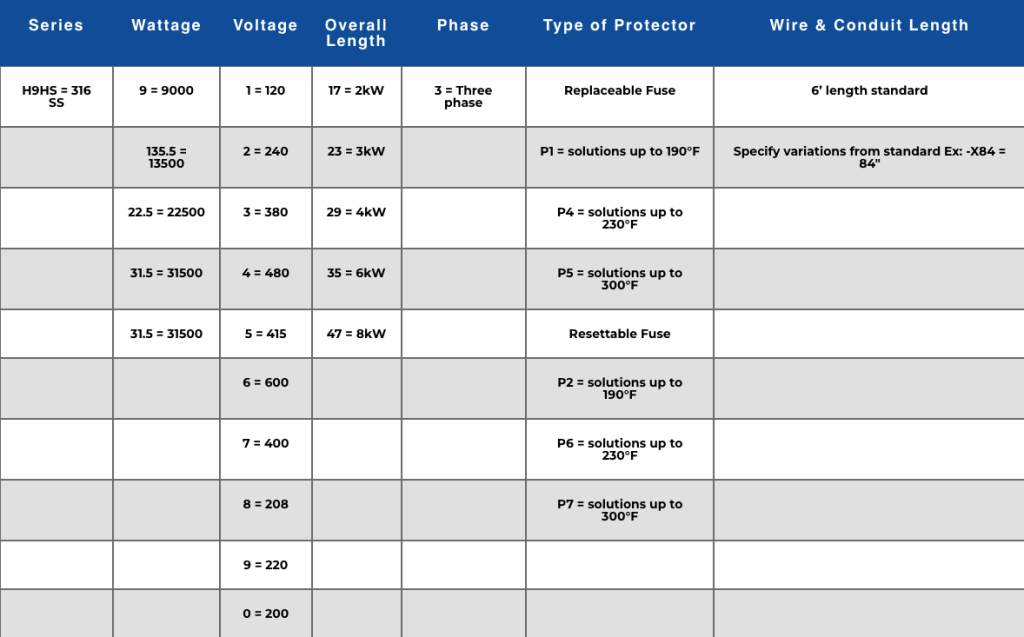

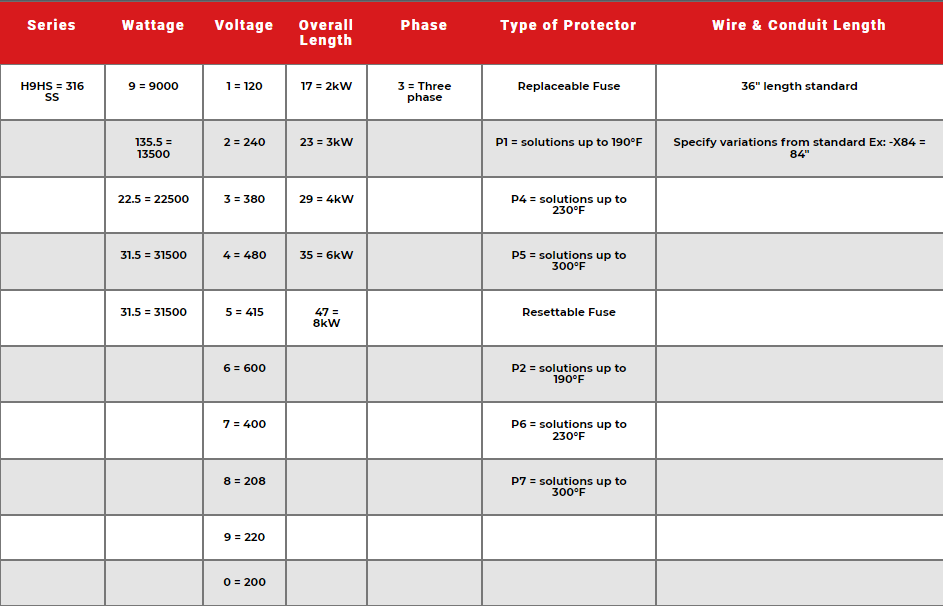

| Series | Wattage | Voltage |
Overall Length |
Phase | Type of Protector | Wire & Conduit Length |
|---|---|---|---|---|---|---|
|
H9HS = 316 SS |
9 = 9000 |
1 = 120 |
17 = 2kW |
3 = Three phase |
Replaceable Fuse |
36″ length standard |
|
|
135.5 = 13500 |
2 = 240 |
23 = 3kW |
|
P1 = solutions up to 190°F |
Specify variations from standard Ex: -X84 = 84″ |
|
|
22.5 = 22500 |
3 = 380 |
29 = 4kW |
|
P4 = solutions up to 230°F |
|
|
|
31.5 = 31500 |
4 = 480 |
35 = 6kW |
|
P5 = solutions up to 300°F |
|
|
|
31.5 = 31500 |
5 = 415 |
47 = 8kW |
|
Resettable Fuse |
|
|
|
|
6 = 600 |
|
|
P2 = solutions up to 190°F |
|
|
|
|
7 = 400 |
|
|
P6 = solutions up to 230°F |
|
|
|
|
8 = 208 |
|
|
P7 = solutions up to 300°F |
|
|
|
|
9 = 220 |
|
|
|
|
|
|
|
0 = 200 |
|
|
|
|
