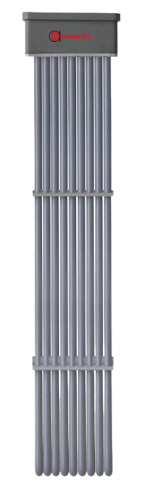

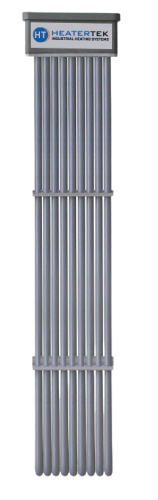

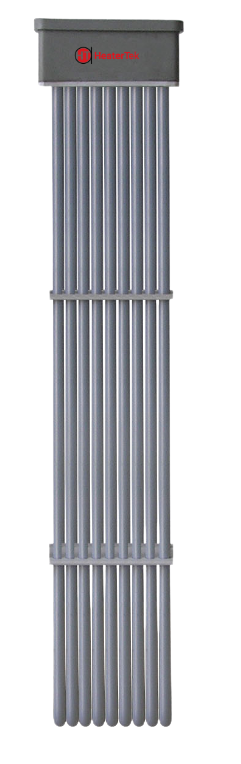

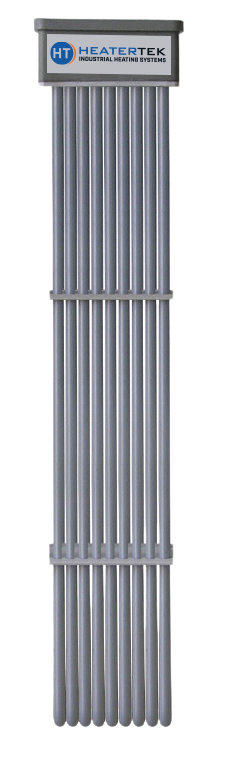

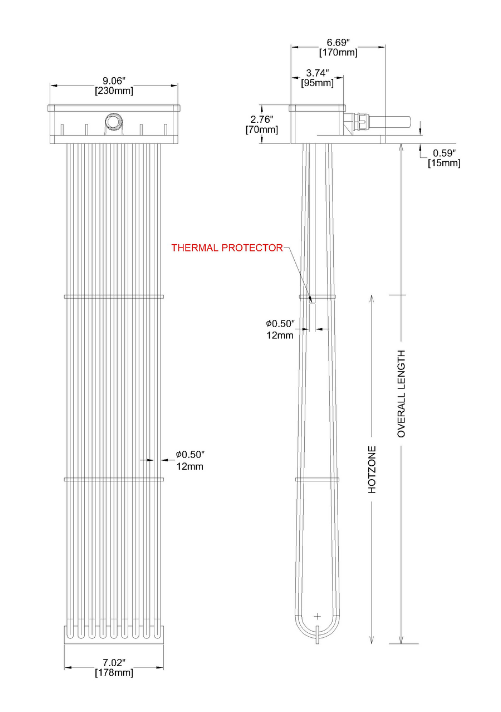

9HZ Nine Element
PTFE Heater
All HeaterTek PTFE fluoropolymer heaters have the same outstanding features:
- Excellent chemical resistance to most aqueous chemistries
- Heavy wall PTFE Tubing over stainless steel element
- Low watt density for long life: 10 w/in² (1.5w/cm²)
- Corrosion resistant PP terminal enclosure
- Wire & conduit included, 36″ Standard
- Grounded metal element
- Voltages 120, 208, 240, or 480
- Guards available
- Thermal over-temperature protection:
- P1 replaceable fuse up to 190°F
- P4 replaceable fuse up to 220°
- P2 resettable fuse up to 190F
- P8 resettable fuse up to 210°F
- P6 Resettable fuse up to 230°F

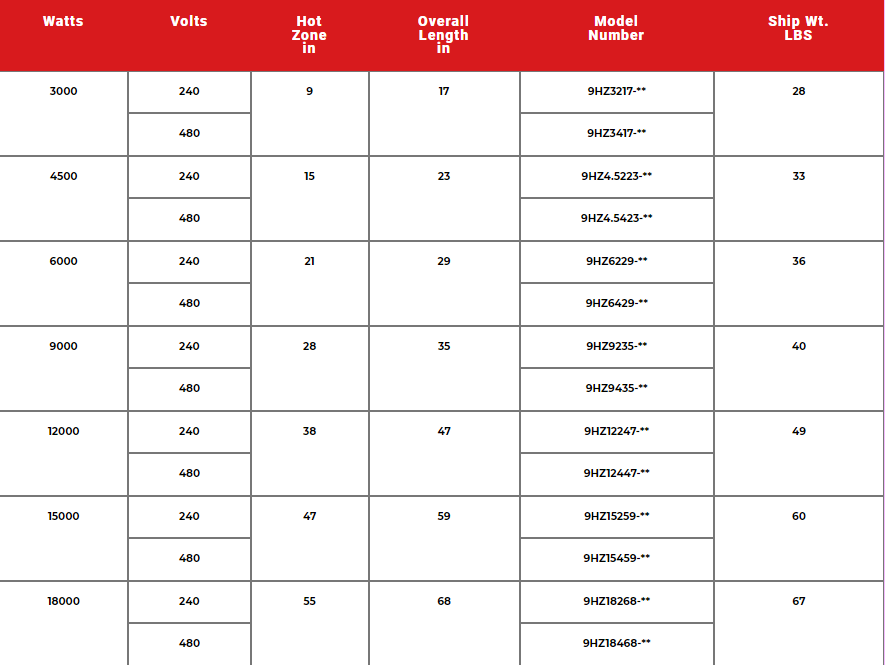

| Watts | Volts |
Hot Zone in |
Overall Length in |
Model Number |
Ship Wt. LBS |
|---|---|---|---|---|---|
|
3000 |
240 |
9 |
17 |
9HZ3217-** |
28 |
|
480 |
9HZ3417-** |
||||
|
4500 |
240 |
15 |
23 |
9HZ4.5223-** |
33 |
|
480 |
9HZ4.5423-** |
||||
|
6000 |
240 |
21 |
29 |
9HZ6229-** |
36 |
|
480 |
9HZ6429-** |
||||
|
9000 |
240 |
28 |
35 |
9HZ9235-** |
40 |
|
480 |
9HZ9435-** |
||||
|
12000 |
240 |
38 |
47 |
9HZ12247-** |
49 |
|
480 |
9HZ12447-** |
||||
|
15000 |
240 |
47 |
59 |
9HZ15259-** |
60 |
|
480 |
9HZ15459-** |
||||
|
18000 |
240 |
55 |
68 |
9HZ18268-** |
67 |
|
480 |
9HZ18468-** |

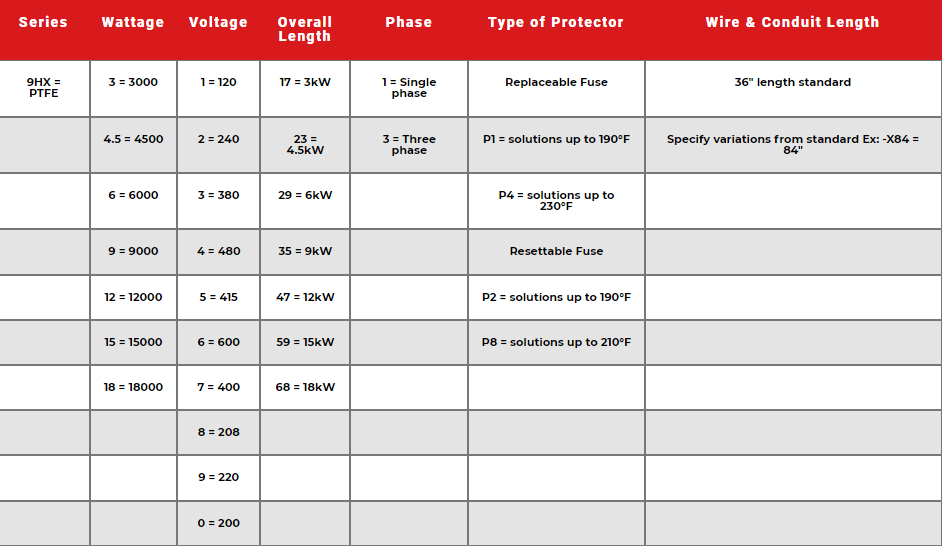

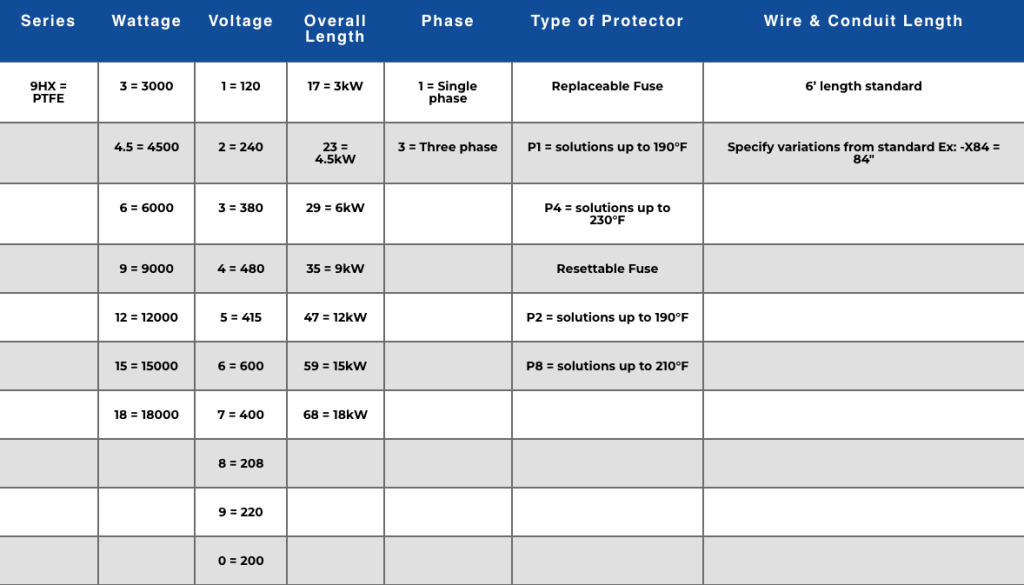

| Series | Wattage | Voltage |
Overall Length |
Phase | Type of Protector | Wire & Conduit Length |
|---|---|---|---|---|---|---|
|
9HX = PTFE |
3 = 3000 |
1 = 120 |
17 = 3kW |
1 = Single phase |
Replaceable Fuse |
36″ length standard |
|
|
4.5 = 4500 |
2 = 240 |
23 = 4.5kW |
3 = Three phase |
P1 = solutions up to 190°F |
Specify variations from standard Ex: -X84 = 84″ |
|
|
6 = 6000 |
3 = 380 |
29 = 6kW |
|
P4 = solutions up to 230°F |
|
|
|
9 = 9000 |
4 = 480 |
35 = 9kW |
|
Resettable Fuse |
|
|
|
12 = 12000 |
5 = 415 |
47 = 12kW |
|
P2 = solutions up to 190°F |
|
|
|
15 = 15000 |
6 = 600 |
59 = 15kW |
|
P8 = solutions up to 210°F |
|
|
|
18 = 18000 |
7 = 400 |
68 = 18kW |
|
|
|
|
|
|
8 = 208 |
|
|
|
|
|
|
|
9 = 220 |
|
|
|
|
|
|
|
0 = 200 |
|
|
|
|
